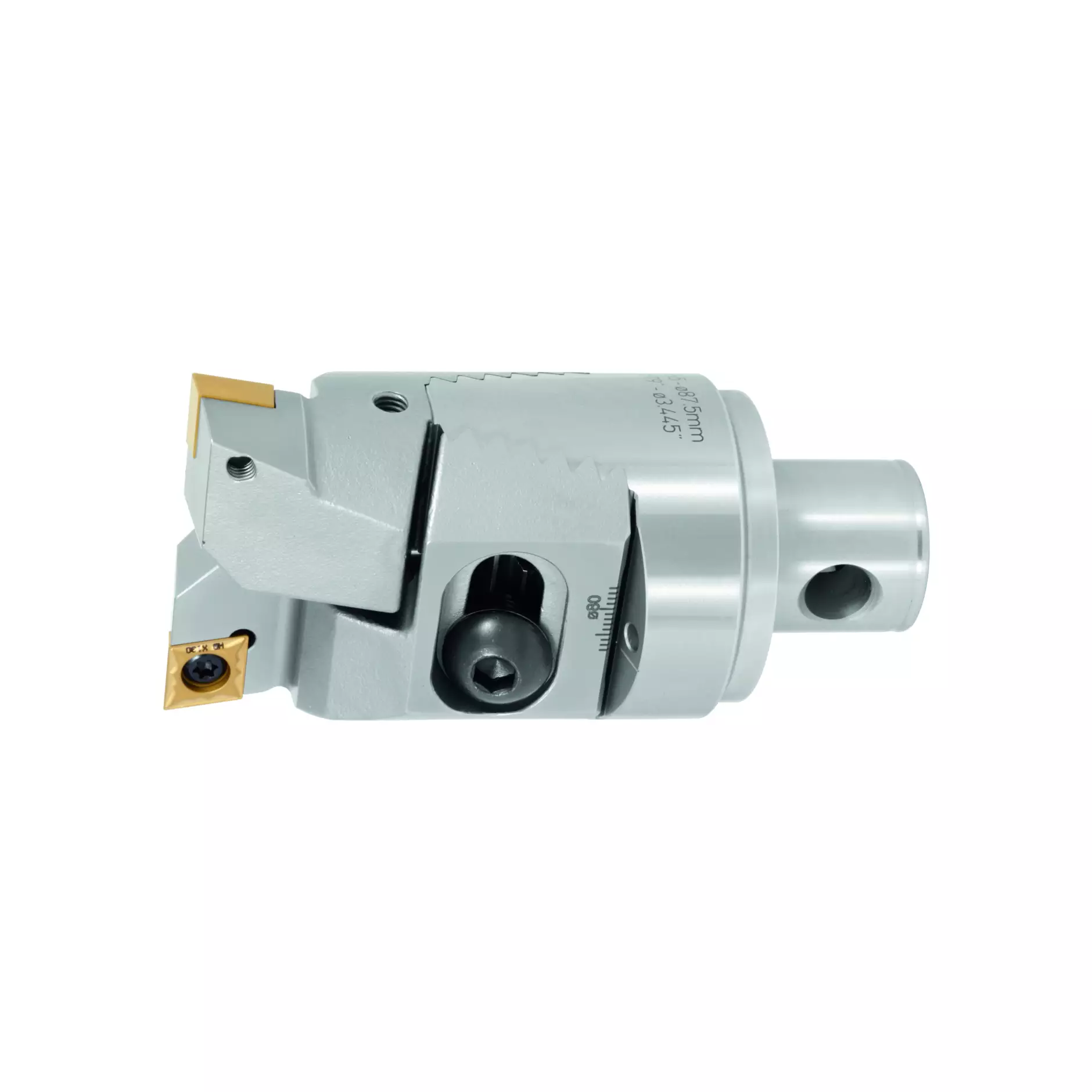

Twin cutter head HW HW80
Article no.: 569046
- 237610
- Version
- The dual toolholder head consists of a base body and indexable insert holder.
Connection to the HW port.
Cutters individually adjustable.
With synchronised spindle on request.
- Application
- For boring out exiting holes.
Specifications
- Through-coolant
- yes
- Type of product
- Twin-cutter head
Execution and specifications
| Show details | Article no. | Connection | suitable indexable insert | Reach L₁ | Boring range ⌀ | Gross CHF | Qty. | Actions | ||
|---|---|---|---|---|---|---|---|---|---|---|
569040 | HW20 | CC..0602.. | 45 mm | 23.5 mm – 30.5 mm | 636.71 | per Piece | ||||
569041 | HW25 | CC..0602.. | 56 mm | 29.5 mm – 40.1 mm | 674.54 | per Piece | ||||
569042 | HW32 | CC..09T3.. | 66 mm | 39.5 mm – 50.5 mm | 731.84 | per Piece | ||||
569043 | HW40 | CC..09T3.. | 75 mm | 49.5 mm – 66.5 mm | 837.78 | per Piece | ||||
569044 | HW50 | CC..1204.. | 90 mm | 65.5 mm – 87.5 mm | 1'011.82 | per Piece | ||||
569045 | HW63 | CC..1204.. | 110 mm | 86.5 mm – 115.5 mm | 1'475.57 | per Piece | ||||
569046 | HW80 | CC..1204.. | 140 mm | 114.5 mm – 153 mm | 1'913.37 | per Piece | ||||
