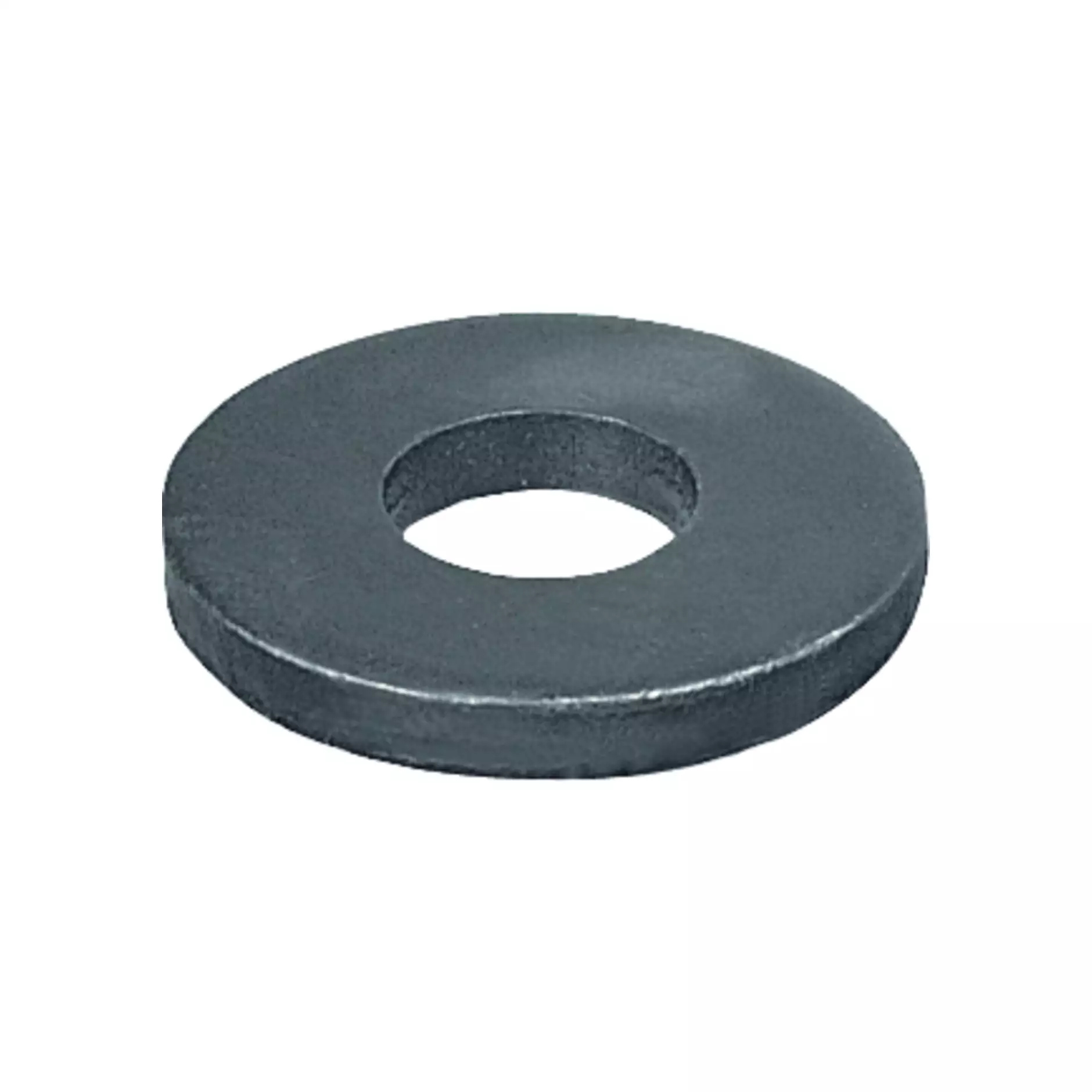

Plain washer M14
Article no.: 245781EAN: 4020772082857
- 375340
- 82859
- Version
- Extra strong, flat-pressed and hardened, edges bevelled.
- Application
- Particularly suitable for clamps.
Especially for making jigs and fixtures.
- Standard
- DIN 6340
Specifications
- Type of product
- Washer
Execution and specifications

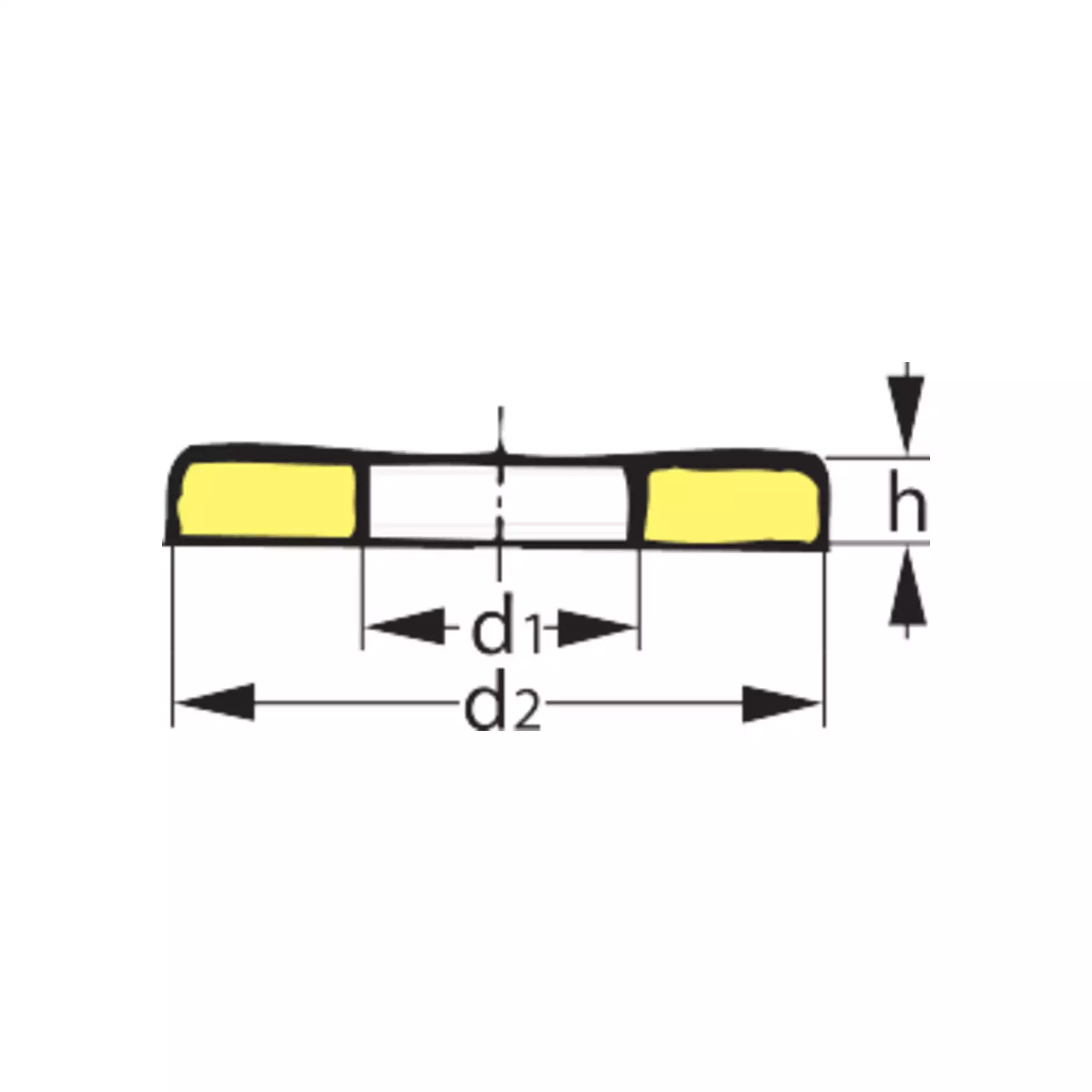

| Show details | Article no. | Type | for threads | Bore ⌀ d₁ | External ⌀ d₂ | Gross CHF | Qty. | Actions | ||
|---|---|---|---|---|---|---|---|---|---|---|
166507 | 6340 | M6 | 6.4 mm | 17 mm | 0.92 | per Piece | ||||
166508 | 6340 | M8 | 8.4 mm | 23 mm | 0.92 | per Piece | ||||
241944 | 6340 | M10 | 10.5 mm | 28 mm | 0.92 | per Piece | ||||
166509 | 6340 | M12 | 13 mm | 35 mm | 1.14 | per Piece | ||||
245781 | 6340 | M14 | 15 mm | 40 mm | 1.24 | per Piece | ||||
Additional information
Price unitper PieceQuantity unitDelivery and pick-up availability | ||||||||||
166510 | 6340 | M16 | 17 mm | 45 mm | 1.68 | per Piece | ||||
245782 | 6340 | M18 | 19 mm | 45 mm | 2.11 | per Piece | ||||
166511 | 6340 | M20 | 21 mm | 50 mm | 2.54 | per Piece | ||||
245783 | 6340 | M22 | 23 mm | 50 mm | 3.13 | per Piece | ||||
166733 | 6340 | M24 | 25 mm | 60 mm | 3.78 | per Piece | ||||
245784 | 6340 | M27 | 28 mm | 68 mm | 6.49 | per Piece | ||||
245785 | 6340 | M30 | 31 mm | 68 mm | 6.59 | per Piece | ||||
245786 | 6340 | M36 | 38 mm | 80 mm | 11.19 | per Piece | ||||
