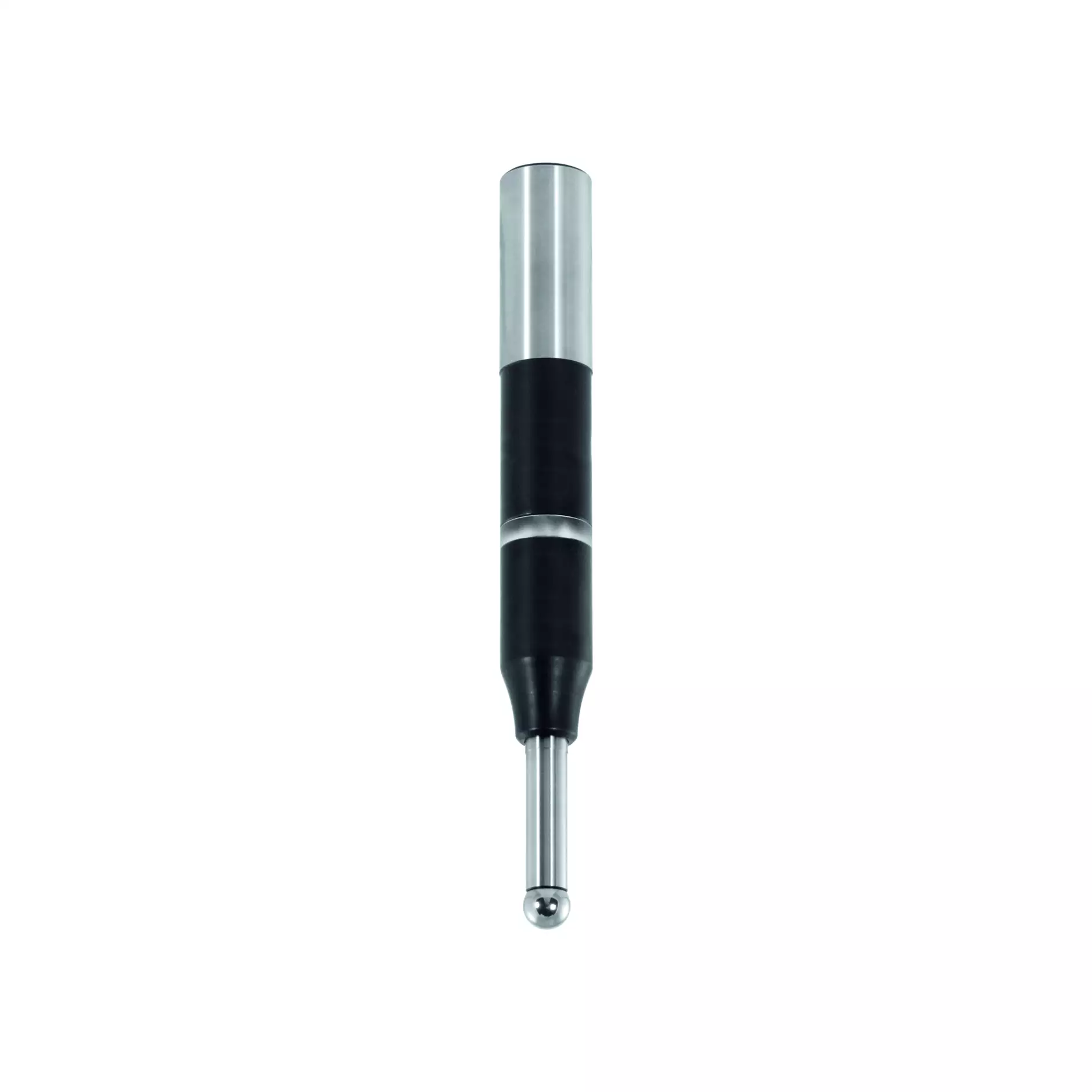

3D edge finder with indicator light long 20 mm

Article no.: 483582EAN: 4260192270520
  • 359078
  • 001532000
Version
The spring-mounted spherical tip protects the unit from damage if contact is too violent.
Functional parts hardened and ground.
Contact accuracy ± 0.005 mm.
Function
When the spherical tip contacts a metallic component,batteries cause the lamp to light = Detection of the reference point.
Application
  • Alignment of component reference surfaces or edges.
  • Determination of bore centres to the machine spindle.


When making contact in the Z axis, the reference length has to be determined using the pre-setter and taken into account.
Supplied with
Supplied with special battery No. Button cell / special battery A23.

Specifications

Type of product
Probes
More information
  • DeliverableDeliverable

Execution and specifications

Article no.Tool shank ⌀‌Article no of the battery / rechargeable battery fittedSpherical point ⌀Overall lengthGross CHFQty.
483582
20 mm081560 A2310 mm167 mm
225.39
per Piece
  • Deliverable

Additional information

Power supplyBattery-powered
‌Number of batteries contained1
