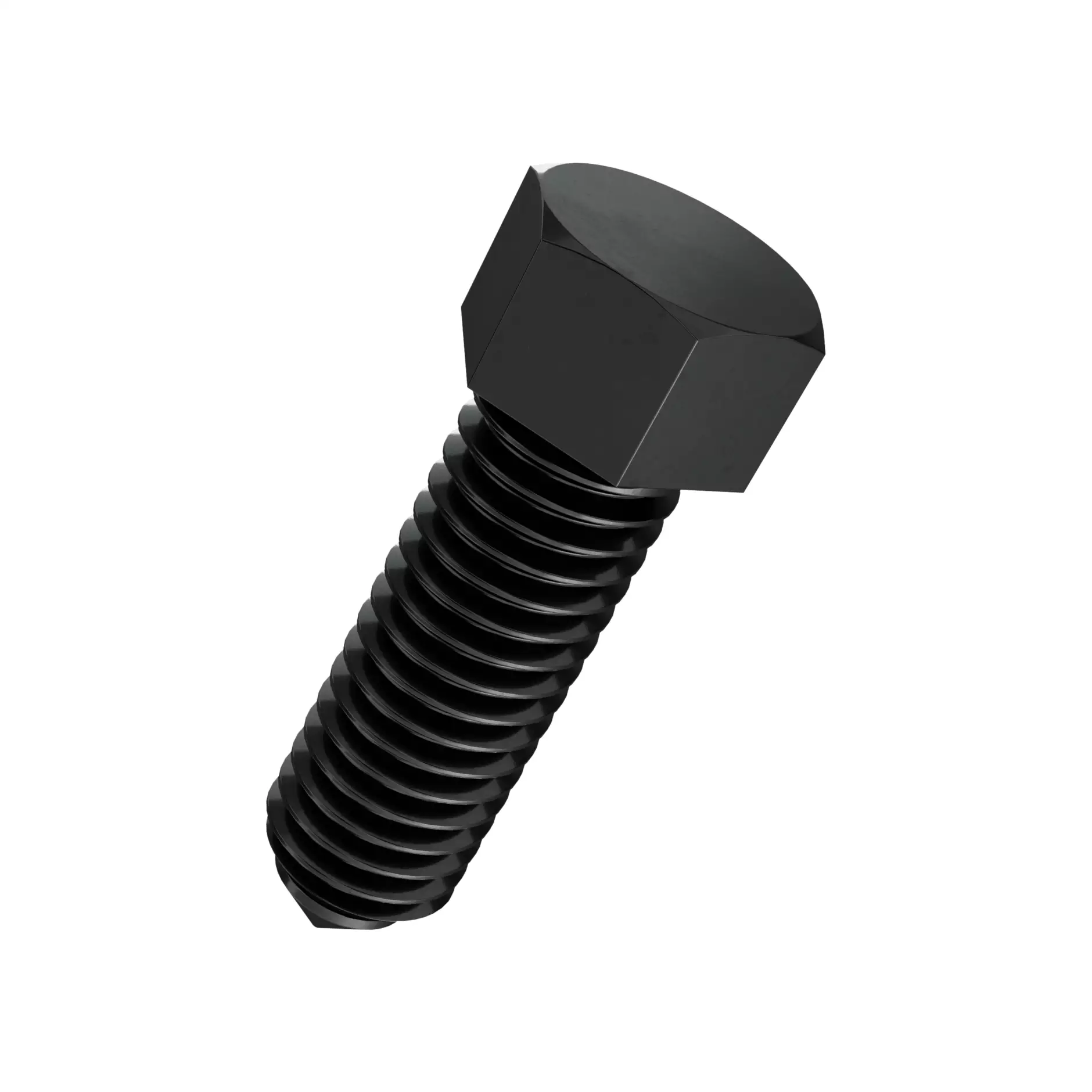

Name: Hex Head screws with short dog point and small hexagon DIN 564B-22H tempered black M12x35 mm
SKU: 2034764
Availability: LimitedAvailability

Execution and specifications

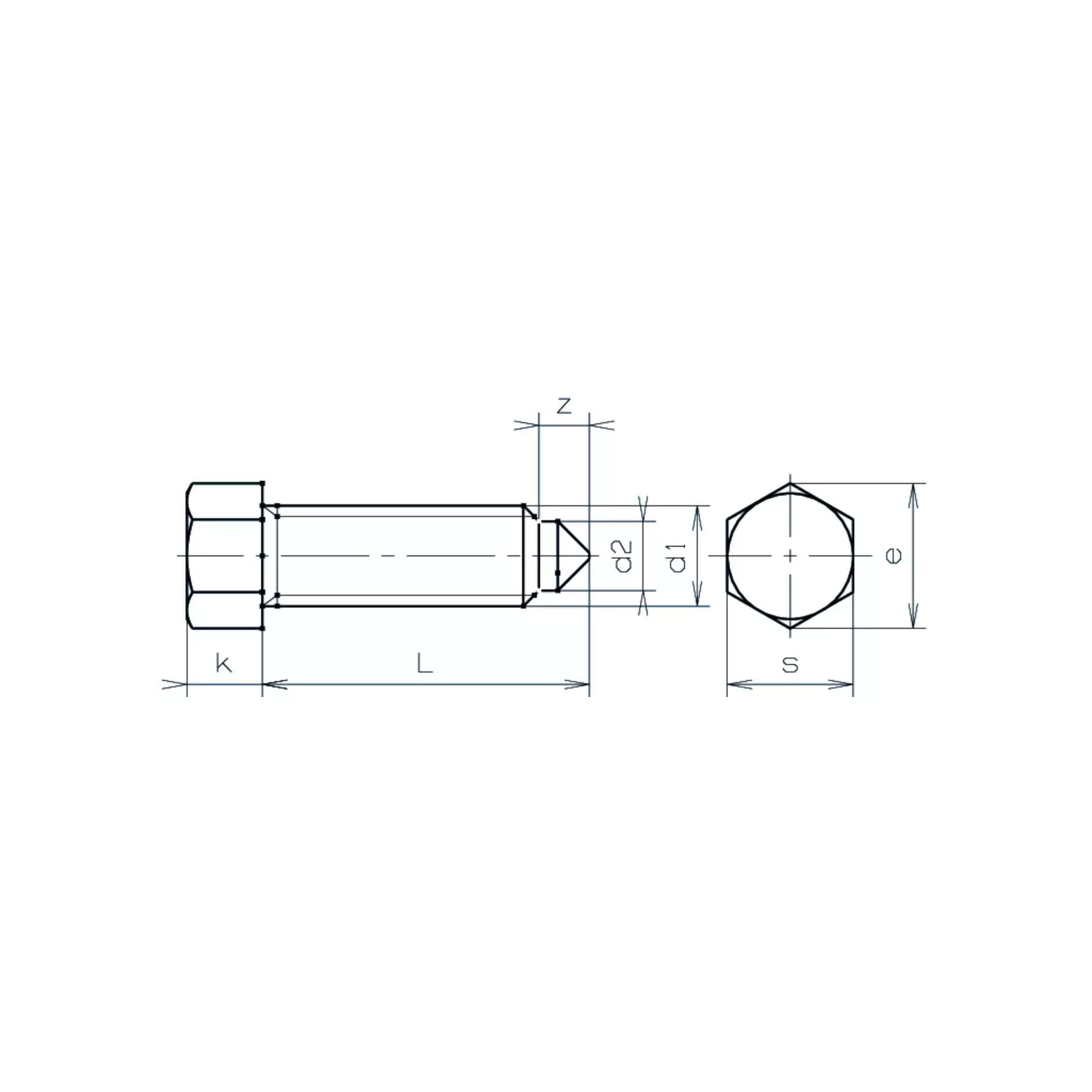

Article no.	d1	L	s	e	Gross CHF	Qty.
2086460					2'145.17	per 100 Piece
2034783	M6	12 mm	8 mm	8.79 mm	32.43	per 100 Piece
2034782	M6	16 mm	8 mm	8.79 mm	38.27	per 100 Piece
2034781	M6	20 mm	8 mm	8.79 mm	34.27	per 100 Piece
2034780	M6	25 mm	8 mm	8.79 mm	34.81	per 100 Piece
2034779	M6	30 mm	8 mm	8.79 mm	38.48	per 100 Piece
2034778	M8	16 mm	10 mm	11.05 mm	42.38	per 100 Piece
2034777	M8	20 mm	10 mm	11.05 mm	50.37	per 100 Piece
2034776	M8	25 mm	10 mm	11.05 mm	53.51	per 100 Piece
2034775	M8	30 mm	10 mm	11.05 mm	56.21	per 100 Piece
2034774	M8	35 mm	10 mm	11.05 mm	58.37	per 100 Piece
2034773	M10	20 mm	13 mm	14.38 mm	63.78	per 100 Piece
2034772	M10	25 mm	13 mm	14.38 mm	71.35	per 100 Piece
2034771	M10	30 mm	13 mm	14.38 mm	77.83	per 100 Piece
2034770	M10	35 mm	13 mm	14.38 mm	114.59	per 100 Piece
2034769	M10	40 mm	13 mm	14.38 mm	98.37	per 100 Piece
2034768	M10	50 mm	13 mm	14.38 mm	102.70	per 100 Piece
2034767	M10	60 mm	13 mm	14.38 mm	105.94	per 100 Piece
2034766	M12	25 mm	16 mm	17.77 mm	102.70	per 100 Piece
2034765	M12	30 mm	16 mm	17.77 mm	107.02	per 100 Piece

Hex Head screws with short dog point and small hexagon DIN 564B-22H tempered black M12x35 mm

Specifications

Execution and specifications
