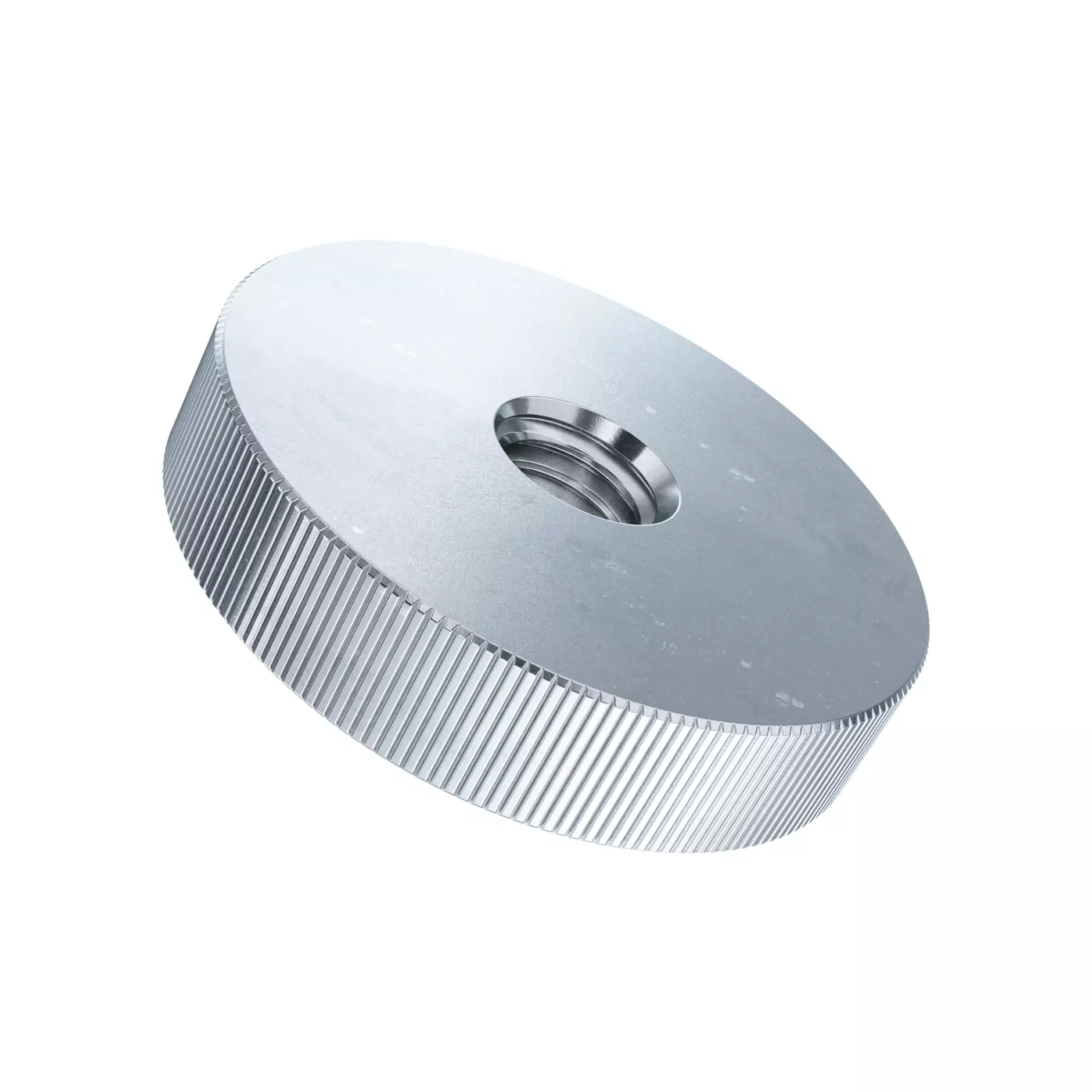

Knurled nuts flat shape DIN 467-5 zinc plated blue M6
Article no.: 114909EAN: 7610363236164
- 164
Specifications
- Norm DIN
- 467
- Drive
- Knurl
- Material
- Steel
- Surface
- zinc plated blue
- Strength class
- 5
Execution and specifications
- Diameter

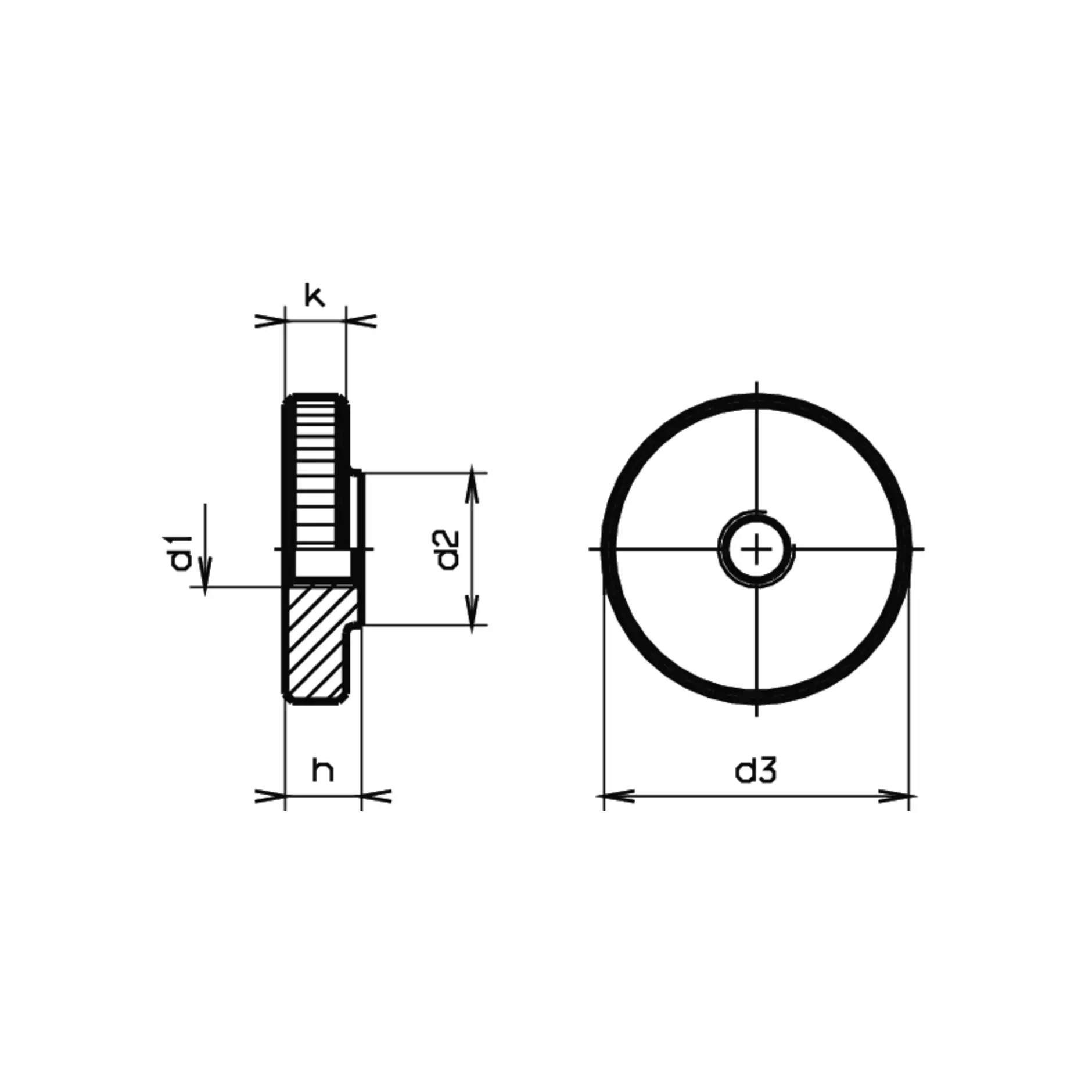

Show details | Article no. | d1 | d2 | d3 | k | Gross CHF | Qty. | Actions | ||
---|---|---|---|---|---|---|---|---|---|---|
114903 | M3 | 6 mm | 12 mm | 2.5 mm | 25.62 | per 100 Piece | ||||
114905 | M4 | 8 mm | 16 mm | 3.5 mm | 35.35 | per 100 Piece | ||||
114907 | M5 | 10 mm | 20 mm | 4 mm | 42.16 | per 100 Piece | ||||
114909 | M6 | 12 mm | 24 mm | 5 mm | 60.54 | per 100 Piece | ||||
Additional information
Price unitper 100 PieceQuantity unitDelivery and pick-up availability | ||||||||||
114911 | M8 | 16 mm | 30 mm | 6 mm | 107.02 | per 100 Piece | ||||
145059 | M10 | 20 mm | 36 mm | 8 mm | 172.96 | per 100 Piece | ||||
2124871 | M12 | 20 mm | 35 mm | 8 mm | 302.68 | per 100 Piece |
