Spring plunger verst. FK 8
Article no.: 386735EAN: 4030618200123
- Z370505
- 22030.0048
- Version
- Spring plungers can be used for locating or for applying pressure, as a detent or for ejection.
- Description
- Body: Free cutting steel, blackened
- Ball: Ball-bearing steel, hardened
- Spring: Stainless steel
Reinforced spring load: marked with two lines
- Note
- Special types on request.
Spring range and forces are precisely tested.
Thread lock on request, please refer to appendix - Technical Data -
Calculation of indexing resistance, see details at the start of the section.
Specifications
- Material
- Free cutting steel
- Material no.
- 1.4305
- Drive
- Hexagon socket
Execution and specifications
| Show details | Article no. | d1 | d2 | l | Spring force F1 | Gross CHF | Qty. | Actions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
157491 | M12 | 8 mm | 26 mm | 61 N | 4.32 | per Piece | ||||||||||||
157492 | M16 | 10 mm | 33 mm | 68 N | 6.11 | per Piece | ||||||||||||
157493 | M20 | 12 mm | 43 mm | 84 N | 9.08 | per Piece | ||||||||||||
157494 | M24 | 15 mm | 48 mm | 127 N | 13.62 | per Piece | ||||||||||||
386846 | M10 | 6 mm | 23 mm | 57 N | 3.13 | per Piece | ||||||||||||
386735 | M8 | 4.5 mm | 18 mm | 36 N | 2.92 | per Piece | ||||||||||||
Additional information
Price unitper PieceQuantity unit
Delivery and pick-up availability | ||||||||||||||||||
386733 | M5 | 3 mm | 14 mm | 15 N | 2.27 | per Piece | ||||||||||||
386734 | M6 | 3.5 mm | 15 mm | 19 N | 2.27 | per Piece | ||||||||||||
Specifications
Version
Spring plungers can be used for locating or for applying pressure, as a detent or for ejection.
Description
- Body: Free cutting steel, blackened
- Ball: Ball-bearing steel, hardened
- Spring: Stainless steel
Reinforced spring load: marked with two lines
Note
Special types on request.
Spring range and forces are precisely tested.
Thread lock on request, please refer to appendix - Technical Data -
Calculation of indexing resistance, see details at the start of the section.
Spring range and forces are precisely tested.
Thread lock on request, please refer to appendix - Technical Data -
Calculation of indexing resistance, see details at the start of the section.

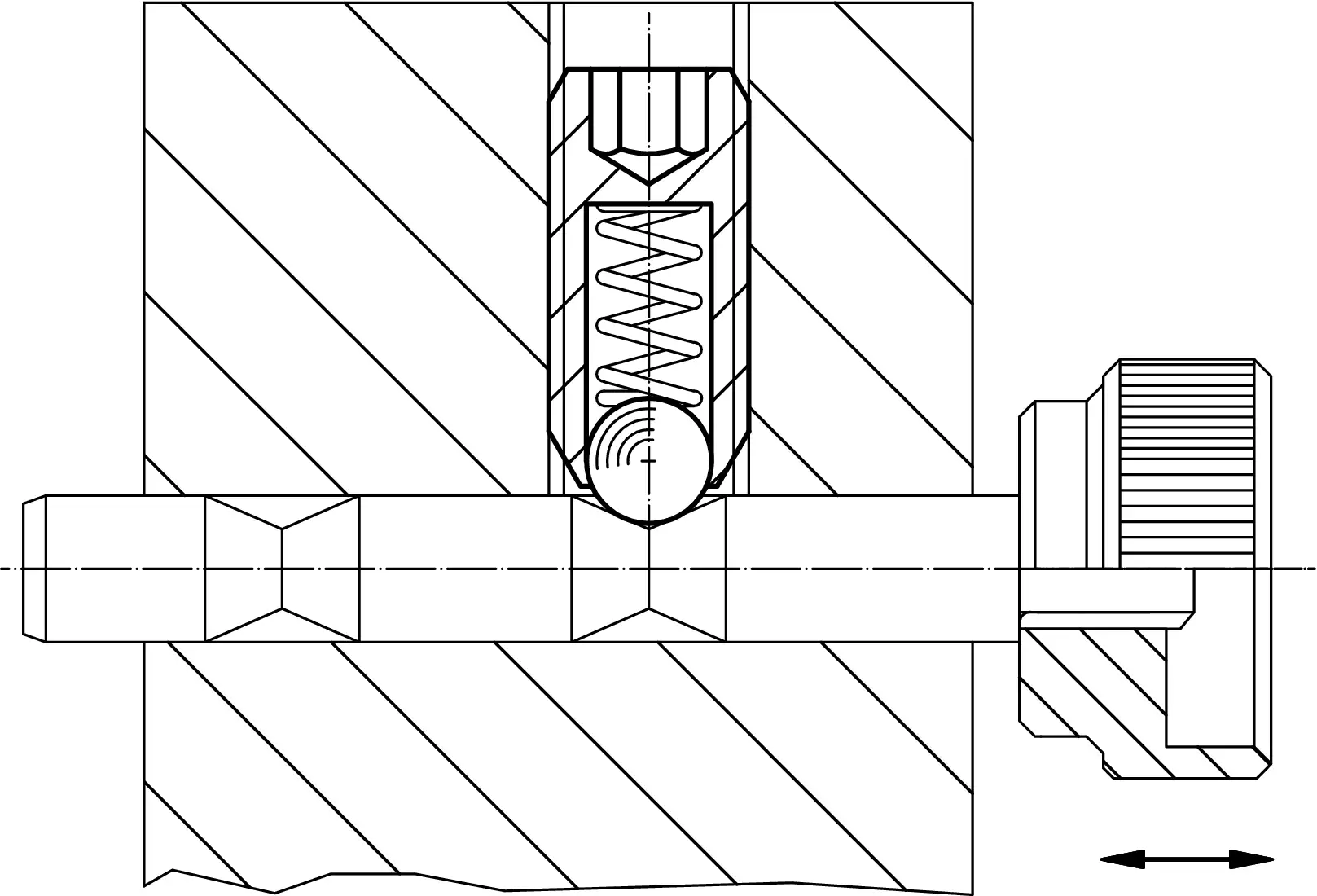

Application images
HALDER Federnde Druckstücke
