Metal band saw blade 27×4150 6/10
Article no.: 223633EAN: 7612908060586
- 173850
- 4150X27X0,9 6/10
- Version
- X-RAY − bi-alfa-cobalt: High-performance bi-metal band saw blade with M42 high-speed alloy steel (HSS, 67-69 HRC) tooth tips and a high-alloy spring steel backing.
- Application
- Variable pitch teeth 0° − very low vibration, for a large range of cross sections (for pipes and profiles, solid materials up to maximum 70 mm).
Variable pitch teeth 10° − general purpose for a wide range of cross-sections (for solid material from 50 mm).

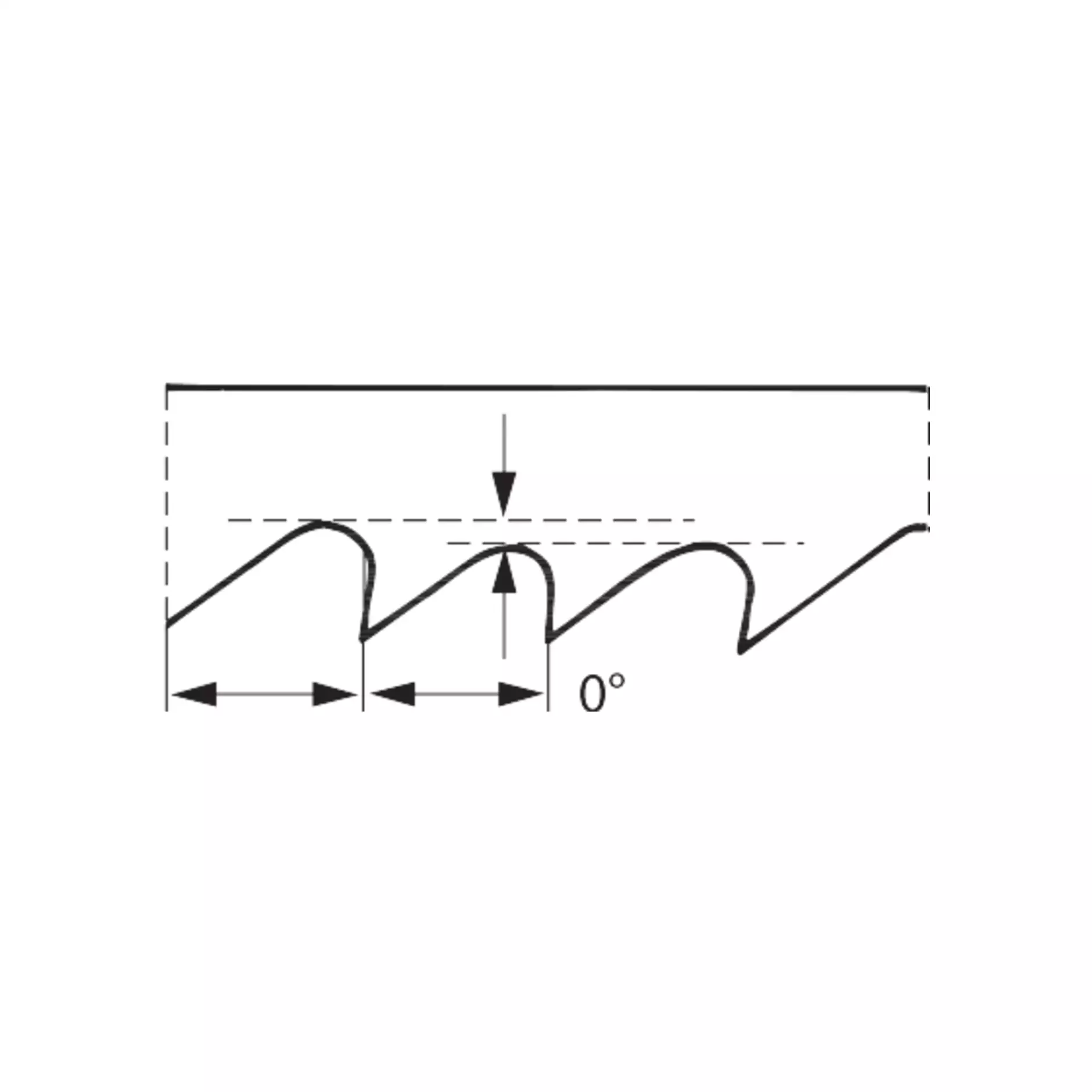

Regular pitch teeth 0° − for small to medium cross-sections up to maximum 70 mm engagement length.
Regular pitch teeth 10° − for large cross-sections from 50 mm engagement.
- Note
- Running in a new blade: See GARANT machining handbook No. Machining handbook - 2-part and information page.
Specifications
- Tool material
- HSS Co 8
- Type of product
- Metal band saw blade
Execution and specifications
| Show details | Article no. | Tooth type | Rake | Width | Thickness | Gross CHF | Qty. | Actions | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
223624 | combi | 10 | 27 mm | 0.9 mm | 65.40 | per Piece | ||||||||
223628 | Combi | 10 | 27 mm | 0.9 mm | 65.40 | per Piece | ||||||||
223630 | combi | 10 | 27 mm | 0.9 mm | 65.40 | per Piece | ||||||||
223631 | combi | 0 | 27 mm | 0.9 mm | 65.40 | per Piece | ||||||||
223633 | combi | 0 | 27 mm | 0.9 mm | 65.40 | per Piece | ||||||||
Additional information
Price unitper PieceQuantity unit
Delivery and pick-up availability | ||||||||||||||
223636 | combi | 0 | 27 mm | 0.9 mm | 65.40 | per Piece | ||||||||
