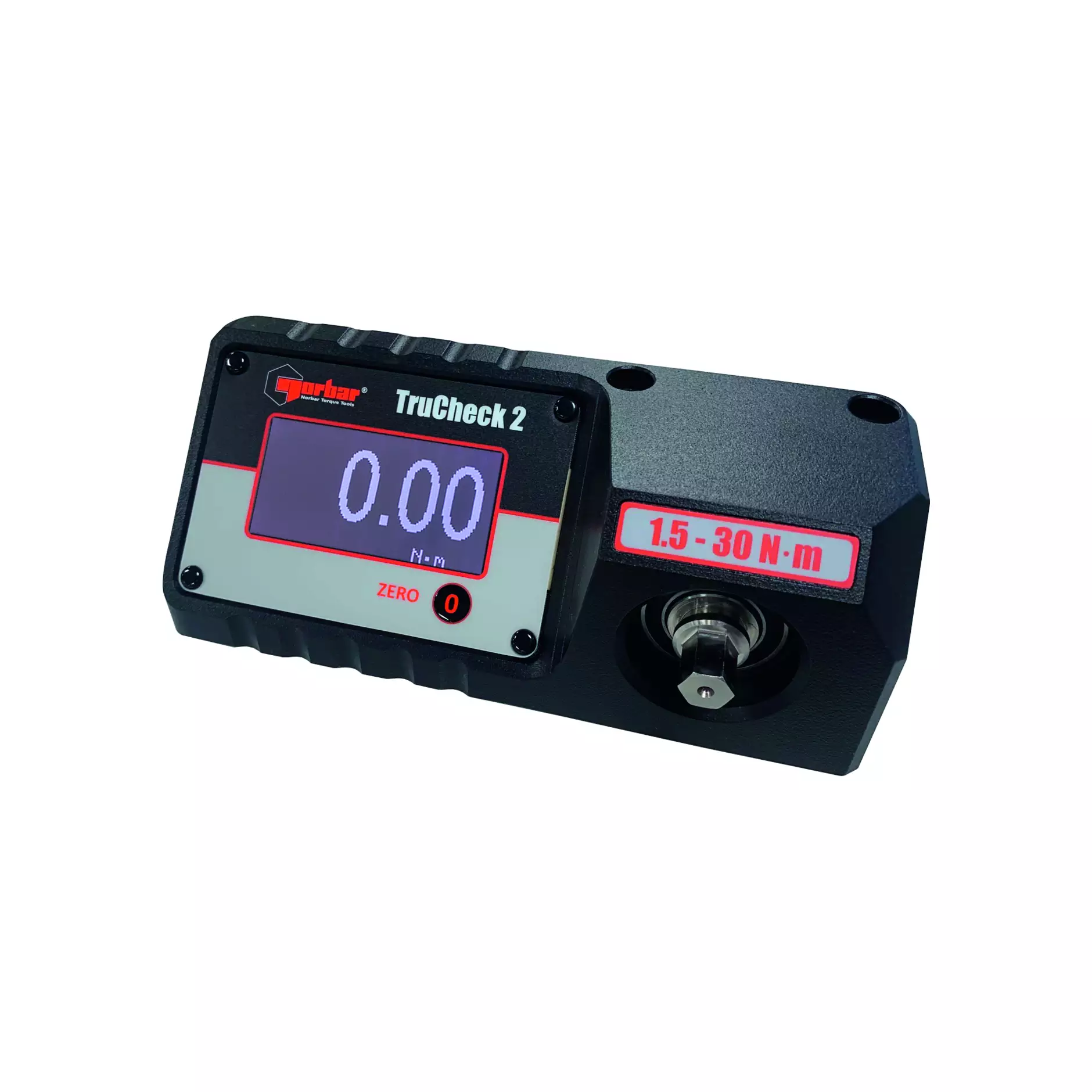

Electronic torque analyser „TruCheck™ 2“
- 654471
- Version
- Compact, handy torque analyser.
- Screw attachment to a flat surface (table, wall etc.).
- LCD display. LED background lighting ensures good legibility under poor lighting conditions.
- The integral micro-USB 2.0 port provides the power supply.
- Units of measure: Nm.
- Advantage
- Very easy to use (reduces errors).
- Suitable even for users who are not “Calibration Specialists”.
- Only a single push button to zero the display.
- Application
- Setting and testing triggering, indicating and right-hand triggering torque wrenches.
- Supplied with
- USB power supply unit (EU/UK/US/AUS), micro USB 2.0 cable, in sturdy plastic case.
Specifications
- Direction of tightening
- Right-hand tightening
- Interface
- USB interface – Bluetooth interface
- Test certificate
- Manufacturer’s test certificate
- Calibration
- O4
- Type of product
- Torque testing device
Execution and specifications
| Show details | Article no. | maximum torque | Torque measuring accuracy | Measuring range | Display unit width | Gross CHF | Qty. | Actions |
|---|---|---|---|---|---|---|---|---|
726480 | 30 N·m | ±1 | 1.5 N·m – 30 N·m | 175 mm | 1'372.87 | per Piece | ||
690410 | 350 N·m | ± 1 | 10 N·m – 350 N·m | 138 mm | 1'372.87 | per Piece | ||
690411 | 1100 N·m | ± 1 – ±2 | 50 N·m – 1100 N·m | 140 mm | 1'913.37 | per Piece |
