Pipework linisher 72227560

Article no.: 2015127EAN: 4014586895864
  • 077715
  • 72227560000
Version
Pipework linisher with extremely high stock removal rate. Ideal for working on pipes and pipe elbows, cleaning up, removal of colouration, grinding weld seams, preparation for polishing, and polishing to mirror finish. Speed range variable for grinding, linishing, and polishing belts. Improved belt guidance.
Note
Linishing belts can be found from No. Aluminium Oxide (A) linishing belt KK711 10×330 mm.

Specifications

Packaging
Carrying case
Type of product
Pipework linishers
More information
  • DeliverableDeliverable

Execution and specifications

Article no.Speed rangeManufacturer's designationPower supplyPower consumptionGross CHFQty.
2015127
2700 min⁻¹ – 8500 min⁻¹RS 17-70 EMains-powered1700 W
1'492.39
per Piece
  • Deliverable

Additional information

Tape width20; 40
Band length815 mm
pipework ⌀ for linishing8 mm – 80 mm
Weight4.64 kg
maximum belt speed9 mm/s – 27 mm/s
Cable length4 m
Soft startyes
Restart blockyes
Nominal voltage230 V

Delivery and pick-up availability

  • DeliverableDeliverable
172885
2700 min⁻¹ – 8500 min⁻¹RS17-70 E Start-SetMains-powered1700 W
1'751.22
per Piece
  • Deliverable

Specifications

Version

Tube grinder for narrow radii, continuously adjustable speed for grinding, satin finishing and high-gloss polishing.
Minimum wall distance 50 mm.

Advantage

  • Effective removal of weld seams through optimum cutting speed of the sanding belts.
  • Continuously adjustable speed for grinding, satin finishing and high-gloss polishing of already assembled handrails.
  • Flexible sanding belts adapt optimally even to narrow pipe bends and thus result in seamless surfaces.
  • 360° peripheral grinding in just 2 steps.
  • Optional deflection rollers for a small distance from the wall.
  • Safeguard against accidental restart.
  • Dust-protected ball bearings.

Supplied with

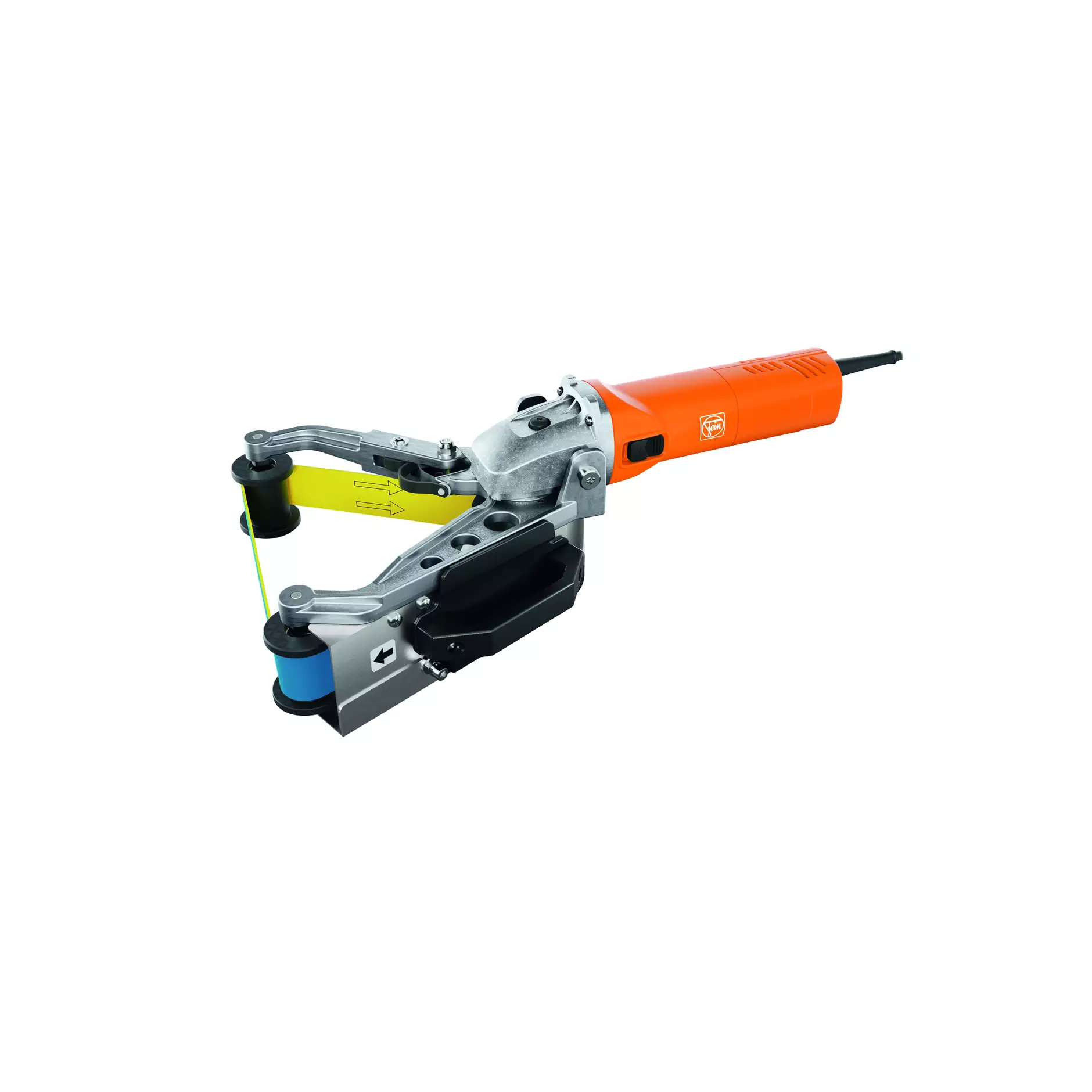

Pipework grinder FEIN RS 17-70 E.
Supplied without accessories in a box.
