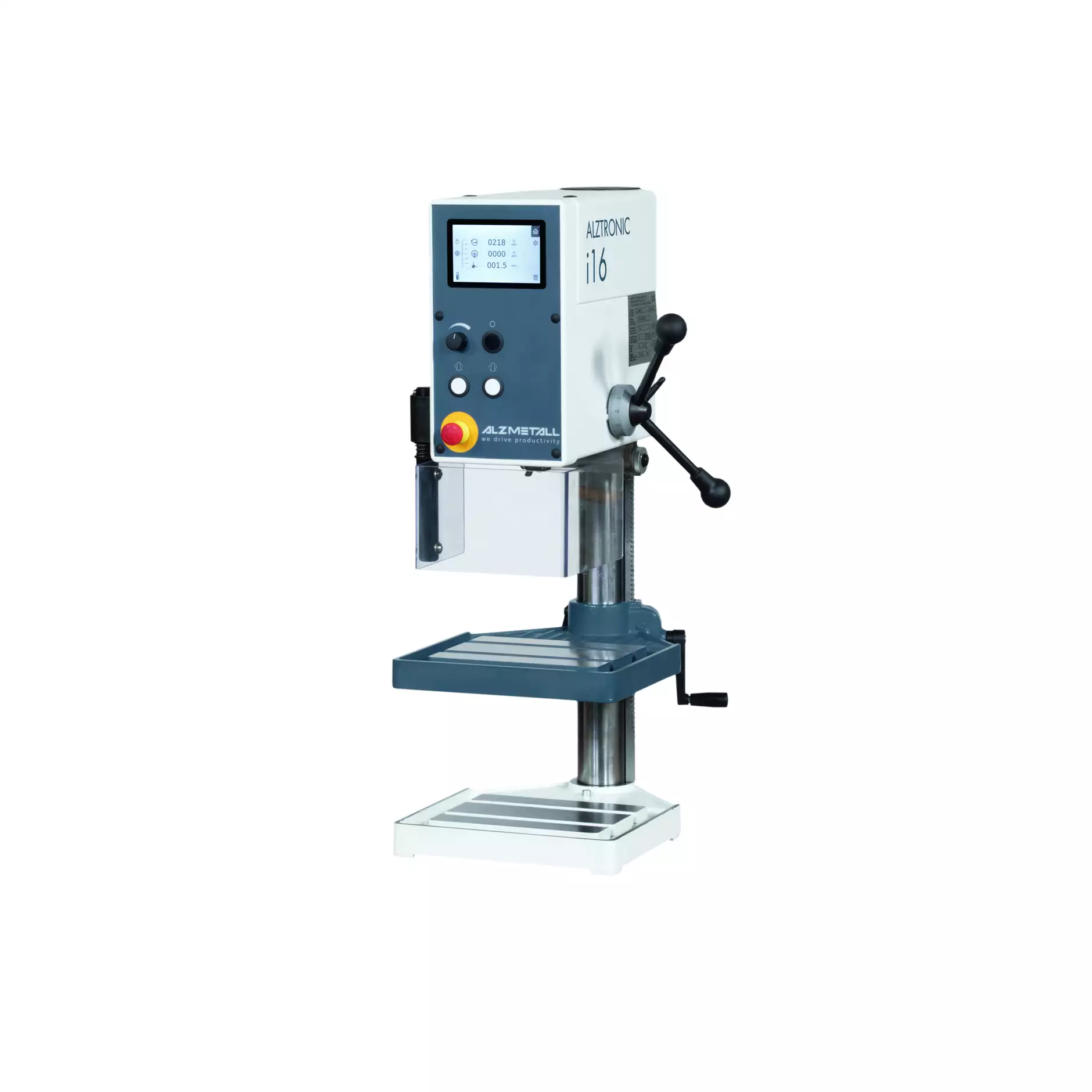

ALZTRONIC bench drill 16 mm

Article no.: 690568
  • 076563
  • ALZTRONIC I16
Version
High-speed, durable and precise bench drill. Multi-touch display with scratch-resistant glass surface for optimum readability. Simple and coherent user guidance via pictograms on display. Digital drill depth display with reference zero orientation.
Fitted as standard:
  • 5-inch TFT LCD display with touch function: Manual input spindle speed target value, actual value speed display, integral drill depth display with touch zero point transmission, virtual drilling depth scale on display, machine status display and warning instructions in the display, service information, choice of user languages: DE/ EN/ FR/ ES/ IT/ NL/ RU.
  • AC motor 230 volts, 50 Hz.
  • Connection plug ready assembled, cable length 3 m.
  • Speed adjustment steplessly by potentiometer.
  • Three separate buttons for clockwise rotation - anticlockwise - stop (spindle stop with braking function).
  • Spindle guard with electrical interlock.
  • Mushroom-head pushbutton (latching) for EMERGENCY STOP.
  • Main switch, lockable.
  • Paint finish: DD textured paint, signal white RAL 9003, PANTONE 7545c, black.

Note
Further bench drills and optional equipment such as LED machine lamps, technology computers etc. are available on request.

Specifications

Type of product
Drill
More information
  • Deliverable in 1-2 weeksDeliverable in 1-2 weeks

Execution and specifications

Article no.Manufacturer's designationPower supplyPower consumptionmaximum speedGross CHFQty.
690564
ALZTRONIC i6Mains operated700 W700 min⁻¹ – 10000 min⁻¹
4'453.72
per Piece
  • Deliverable in 1-2 weeks
690565
ALZTRONIC i9Mains operated700 W390 min⁻¹ – 6500 min⁻¹
2'848.44
per Piece
  • Deliverable
690566
ALZTRONIC i12Mains operated700 W250 min⁻¹ – 5000 min⁻¹
3'621.35
per Piece
  • Deliverable in 1-2 weeks
690567
ALZTRONIC i14Mains operated700 W230 min⁻¹ – 4000 min⁻¹
3'924.03
per Piece
  • Deliverable
690568
ALZTRONIC i16Mains operated700 W100 min⁻¹ – 2000 min⁻¹
4'360.24
per Piece
  • Deliverable in 1-2 weeks

Additional information

maximum drill ⌀ in steel16 mm
ToolholderMT2
maximum machine tap ⌀ in steelM12
Spindle stroke80 mm
Feedmanual
Distance spindle-base plate minimum437 mm
Distance spindle-base plate maximum437 mm
Distance spindle-machine table minimum75 mm
Distance spindle-machine table maximum357 mm
Throat190 mm
Column ⌀65 mm
Machine table width of usable area240 mm
Machine table length of usable area300 mm
Machine baseplate width of usable area300 mm
Machine baseplate height of usable area240 mm
Machine table height adjustmentHand crank
T-slot nominal size12 mm
Number of T-slots2
T-slot pitch80 mm
Weight83 kg
IP Index of ProtectionIP 54

Delivery and pick-up availability

  • Deliverable in 1-2 weeksDeliverable in 1-2 weeks

Specifications

Version

With rigid and height-adjustable and swivelling machine table.

Function

IP54: Protected against splashed water from all directions and protected against penetration of dust into the inside (protected against dust), also completely protected against touching.

Note

Available with optional thread cutting device.
