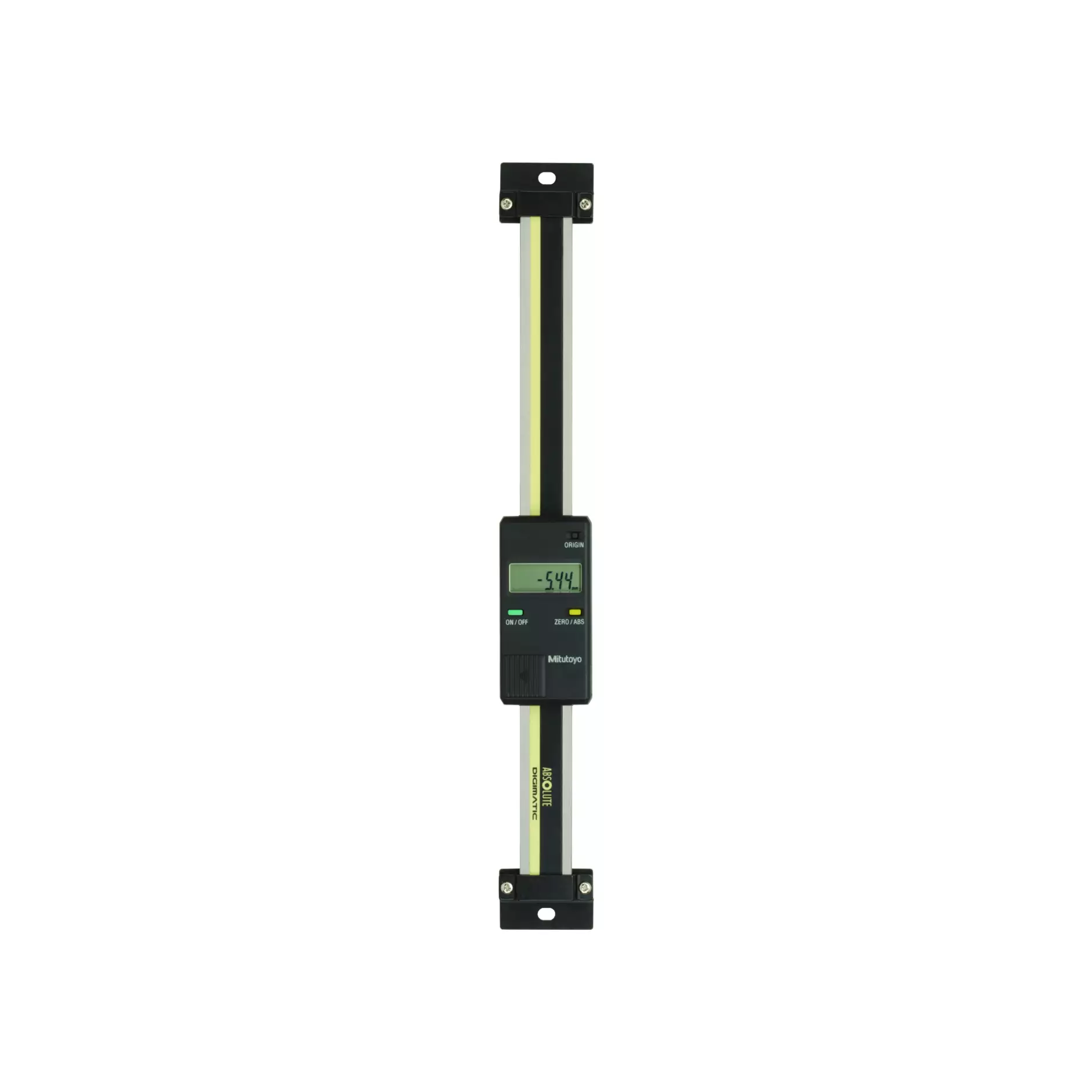

Scale unit vertical 100 mm

Article no.: 358764EAN: 7612908604209
  • 499402
  • 572-300-10
Version
With absolute electronics and large easy-to-read display digits. One-off setting of the zero position, which remains the absolute zero point until the battery has to be replaced (approx. 1.5 years). Maximum measuring precision with very high speed of travel. ZERO/ABS function − zero setting and changeover between relative and absolute measurement.
Scale unit with capacitive electronic measuring system. For vertical installation.
Application
Suitable for measuring and positioning tasks on machine tools, jigs, etc.
Supplied with
1 battery No. Button cell / special battery size 357.
Optional extras
Data cable No. Connecting cable with data switch.

Specifications

Standard
Manufacturer’s standard
Interface
Digimatic interface
Measured value saving
once-off setting of the zero position
Measurement technology
digital
Type of product
Scale unit
More information
  • Deliverable in 1-2 weeksDeliverable in 1-2 weeks

Execution and specifications

Article no.Measuring rangeScale divisionsError limitOverall length L₂Gross CHFQty.
358764
0 mm – 100 mm0.01 mm0.03 mm220 mm
407.00
per Piece
  • Deliverable in 1-2 weeks

Additional information

Length of the measuring beam L₁244 mm
Power supplyBattery-powered
‌Number of batteries contained1
‌Article no of the battery / rechargeable battery fitted081560 357
Weight250 g
CalibrationPrice on request

Delivery and pick-up availability

  • Deliverable in 1-2 weeksDeliverable in 1-2 weeks
648533
0 mm – 150 mm0.01 mm0.03 mm270 mm
423.21
per Piece
  • Deliverable in 1-2 weeks
648534
0 mm – 200 mm0.01 mm0.03 mm320 mm
438.35
per Piece
  • Deliverable in 1-2 weeks
