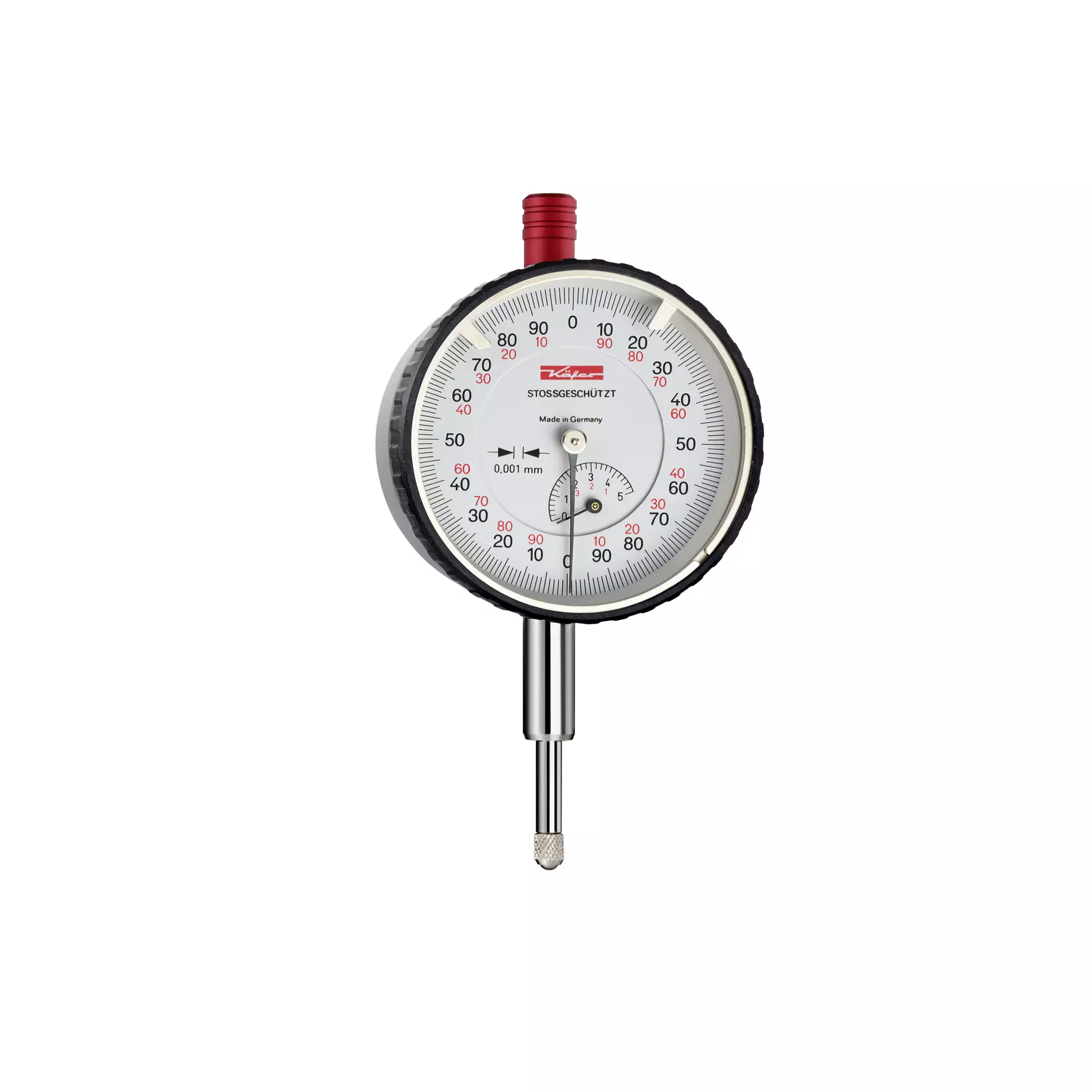

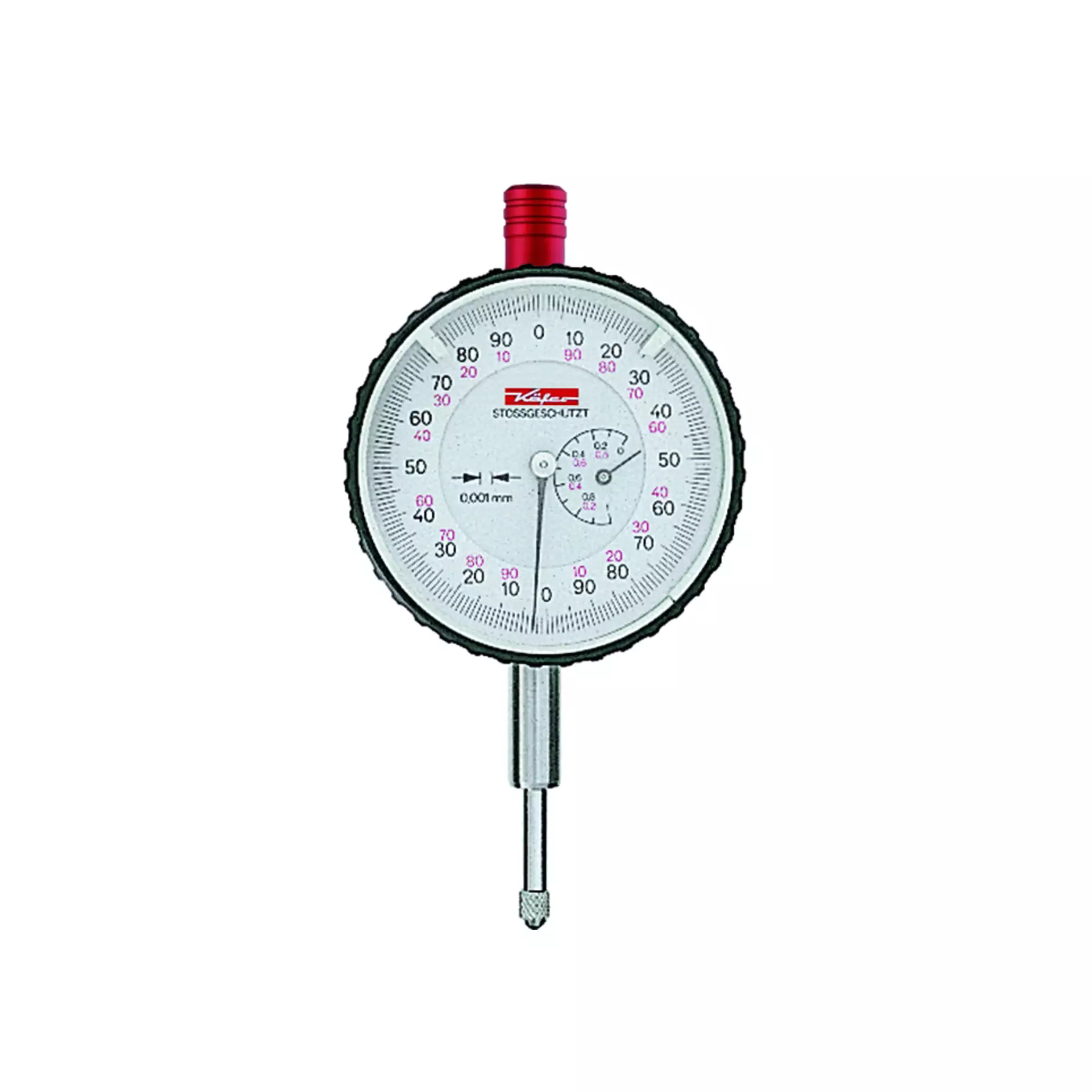

Precision dial indicator shock-resistant 5/58 mm

Article no.: 191691EAN: 4031452100563
  • 433400
  • FEINMESSUHR FM 1000/5 S
Version
Strong, satin chrome plated brass casing; unbreakable dial glass.
Clamping shank ⌀ 8 mm h6, hardened and ground.
High accuracy version.
The most important parts of the mechanism are jewel-mounted.
Central pointer for 1/1000 mm reading.
Outer ring of dial face can be rotated to zero the dial.
Nearly constant measuring force over the entire measuring range.
High-quality shock absorption for particularly long working life.
Dimensions to DIN EN ISO 463, issue June 2006.
Optional extras
Special contact points No. Steel contact point; Carbide contact point; Ruby contact point.

Specifications

Measurement technology
analogue
Packaging
sturdy box
Type of product
dial gauge
More information
  • DeliverableDeliverable

Execution and specifications

Article no.StandardMeasuring rangeGraduationReading per pointer revolutionGross CHFQty.
221178
Manufacturer’s standard1 mm0.001 mm0.2 mm
162.15
per Piece
  • Deliverable in 3-4 weeks
221179
Manufacturer’s standard1 mm0.001 mm0.2 mm
174.58
per Piece
  • Deliverable
191691
Manufacturer’s standard5 mm0.001 mm0.2 mm
190.80
per Piece
  • Deliverable

Additional information

Measurement variation MPE (measurement range)10 µm
Gauging force1.5 N – 2 N
Body ⌀58 mm
CalibrationC2

Delivery and pick-up availability

  • DeliverableDeliverable
544159
Manufacturer’s standard3 mm0.001 mm0.2 mm
184.85
per Piece
  • Deliverable in 3-4 weeks
544160
Manufacturer’s standard5 mm0.001 mm0.2 mm
197.82
per Piece
  • Deliverable
