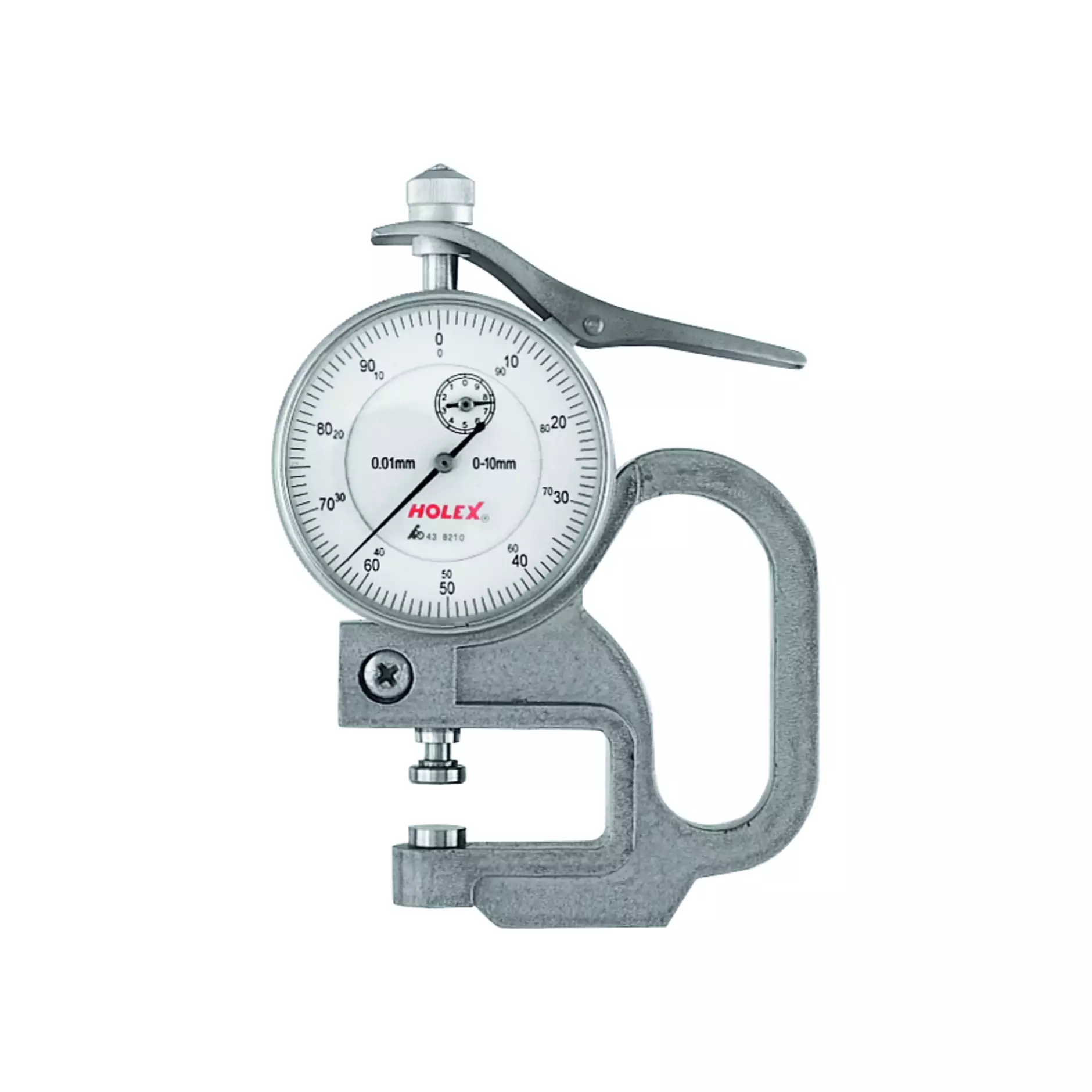

Dial thickness gauge 0-10 mm
Article no.: 221243
- 438210
- Version
- Dial thickness gauge with lift-off lever (gauging force is independent of the user). Lightweight frame, painted. Measuring faces hardened and ground.
Lapped measuring faces.
Specifications
- Standard
- Manufacturer’s standard
- Type of product
- Dial thickness gauges
- Measurement technology
- analogue
- Packaging
- sturdy box
- Calibration
- C6
Execution and specifications
| Show details | Article no. | Measuring range | Scale divisions | Error limit | Measuring face ⌀ | Gross CHF | Qty. | Actions | ||
|---|---|---|---|---|---|---|---|---|---|---|
221243 | 0 mm – 10 mm | 0.01 mm | 0.02 mm | 10 mm | 127.56 | per Piece | ||||
