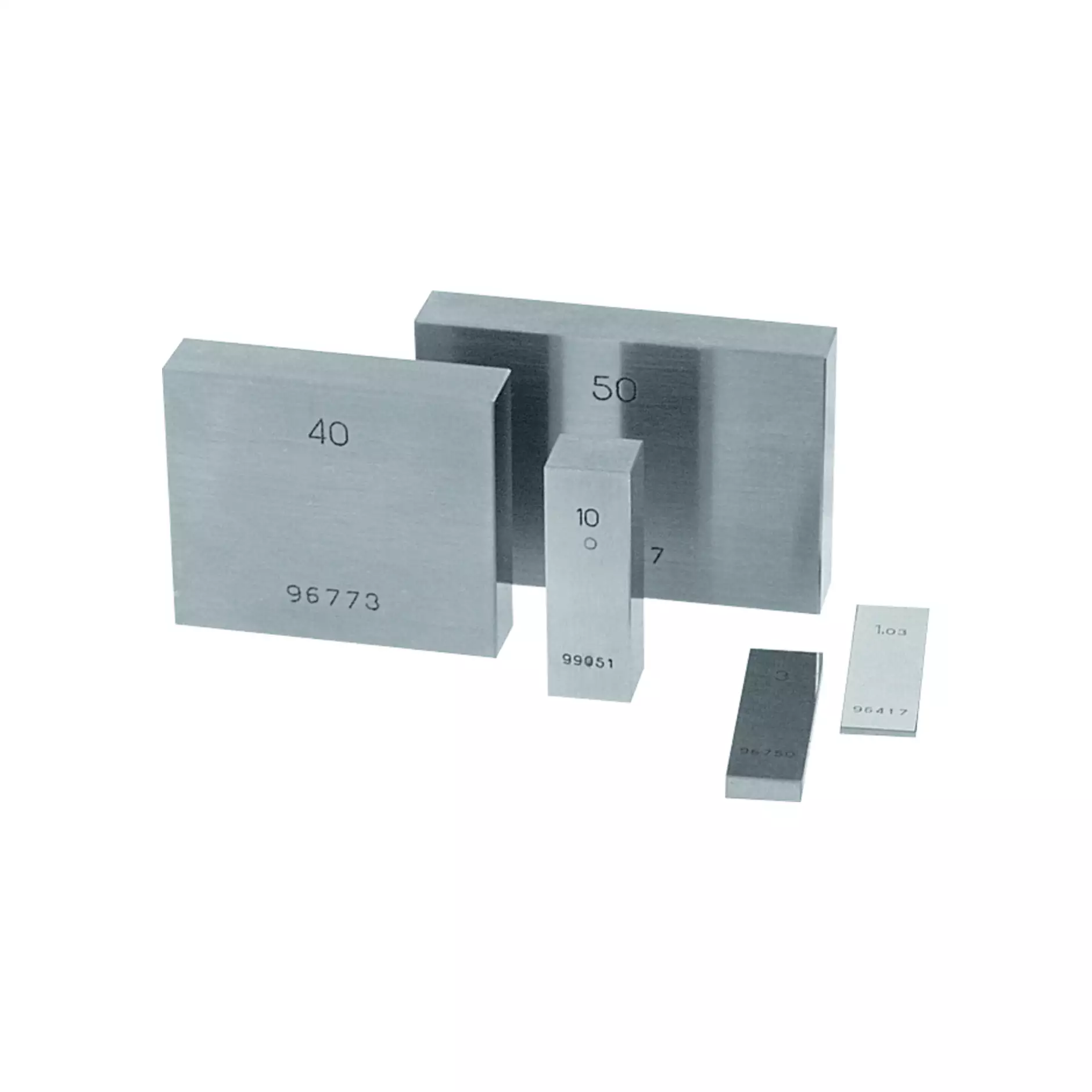

Steel gauge block Tolerance class 1
- 481050
- Version
- All gauge blocks are marked with an individual identification number.
Of special alloy steel, carefully hardened and stress-relieved.
Size 0.5 to 10 − cross-section = 30×9 mm.
Size 11 to 500 − cross-section = 35×9 mm.
Tolerance class 1 for checking standards, gauges and for setting length gauges as well as for normal inspection work in the inspection room.
Version same as No. Gauge block set Tolerance class 1.
- Note
- Other nominal dimensions available on request.
Specifications
- Standard
- DIN EN ISO 3650
- Tolerance class
- 1
- Material
- special alloy steel, hardened and stress-relieved
- Calibration
- L2
- Type of product
- Gauge block
Execution and specifications
| Show details | Article no. | Nominal size | Gross CHF | Qty. | Actions |
|---|---|---|---|---|---|
230438 | 0.5 mm | 36.11 | per Piece | ||
230437 | 1 mm | 24.92 | per Piece | ||
230436 | 1.001 mm | 30.21 | per Piece | ||
230435 | 1.002 mm | 30.21 | per Piece | ||
230434 | 1.003 mm | 30.21 | per Piece | ||
230433 | 1.004 mm | 30.21 | per Piece | ||
230432 | 1.005 mm | 30.21 | per Piece | ||
230431 | 1.006 mm | 30.21 | per Piece | ||
230430 | 1.007 mm | 30.21 | per Piece | ||
230429 | 1.008 mm | 30.21 | per Piece | ||
230428 | 1.009 mm | 30.21 | per Piece | ||
230427 | 1.01 mm | 30.21 | per Piece | ||
230426 | 1.02 mm | 30.21 | per Piece | ||
230425 | 1.03 mm | 30.21 | per Piece | ||
230424 | 1.04 mm | 30.21 | per Piece | ||
230423 | 1.05 mm | 30.21 | per Piece | ||
230422 | 1.06 mm | 30.21 | per Piece | ||
230421 | 1.07 mm | 30.21 | per Piece | ||
230420 | 1.08 mm | 30.21 | per Piece | ||
230419 | 1.09 mm | 30.21 | per Piece |
