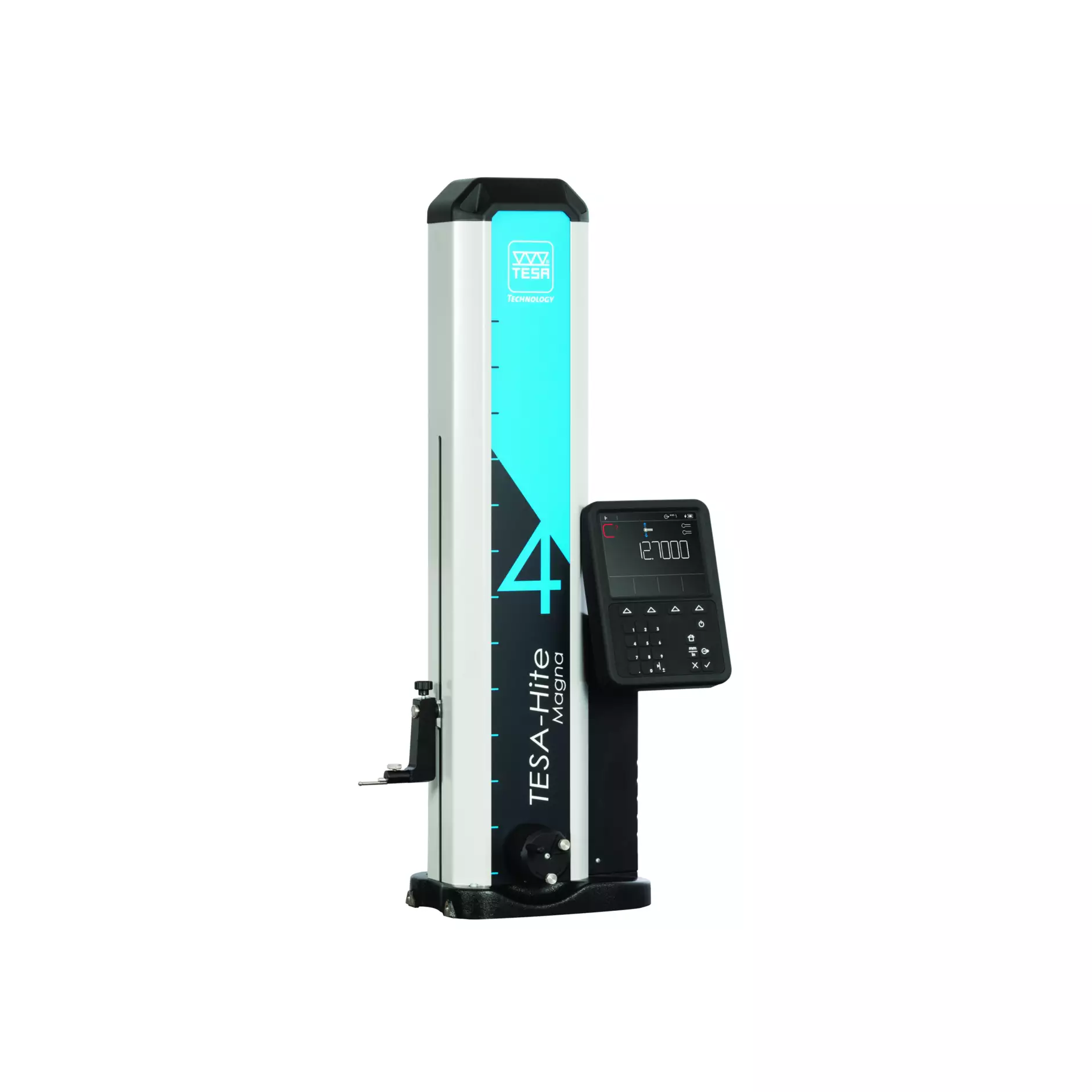

TESA HITE MAGNA digital height gauge 400
Article no.: 703403
- 445240
- 00730082
- Version
- High accuracy, very robust, manually adjustable height gauges. Dynamic component contact with consistent measuring force. Easy to use, due to large numeric display and symbols for measurement functions.
- TESA Magna µ magnetic measuring system for use in particularly rough environmental conditions.
- Large clear display screen with 21 mm character height and intuitive symbols. Colour display and backlighting for better legibility.
- Very long battery life for cordless measurements.
- User-friendly with multi-lingual context help in the active functions.
- Significantly faster measurement of the return points (min, max, ⌀) by use of patented Quickcenter Dynamic technology.
- Advantage
- Particularly suitable for use in production areas. Highly immune to the effects of contamination by both solids and liquids. Front face of the panel protected to IP65, measurement system protected to IP55.
- Application
- For measuring heights and steps, diameters, hole spacings, slot widths and deviations from parallelism etc.
- Supplied with
- Base unit with control panel, standard contact point carrier, mains cable, standard contact point with carbide ball ⌀ 5 mm, 110 – 240 V power supply unit, rechargeable LI-ion battery. SCS calibration certificate.
- Optional extras
- Various accessories available on request. Contact point set No. Contact point set small and No. Contact point set large, TLC-BLE radio remote control No. TLC-BLE radio transmitter, data cable No. Data cable TLC, 2 m.
Specifications
- Standard
- Manufacturer’s standard
- Reversible reading
- mm / inch
- Interface
- TESA Link Connector TLC
- Measurement technology
- digital
- Test certificate
- Manufacturer’s test certificate
- Type of product
- Height gauge
Execution and specifications
| Show details | Article no. | Measuring range | maximum application range | Graduations can be switched over | Error limit (L = meas. length in mm) | Gross CHF | Qty. | Actions | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
703403 | 0 mm – 415 mm | 0 mm – 570 mm | 0.001 / 0.005 / 0.01 | 8 | 3'926.80 | per Piece | ||||||||||||||||||
Additional information
Delivery and pick-up availability | ||||||||||||||||||||||||
703404 | 0 mm – 715 mm | 0 mm – 870 mm | 0.001 / 0.005 / 0.01 | 8 | 4'648.30 | per Piece | ||||||||||||||||||
Specifications
Function
IP55: Protected against jets of water from all directions and protected against penetration of dust into the inside (protected against dust), also completely protected against touching.
