Digital height gauge and marking-out system 300 mm

Article no.: 328357EAN: 7612908476714
  • 443850
Version

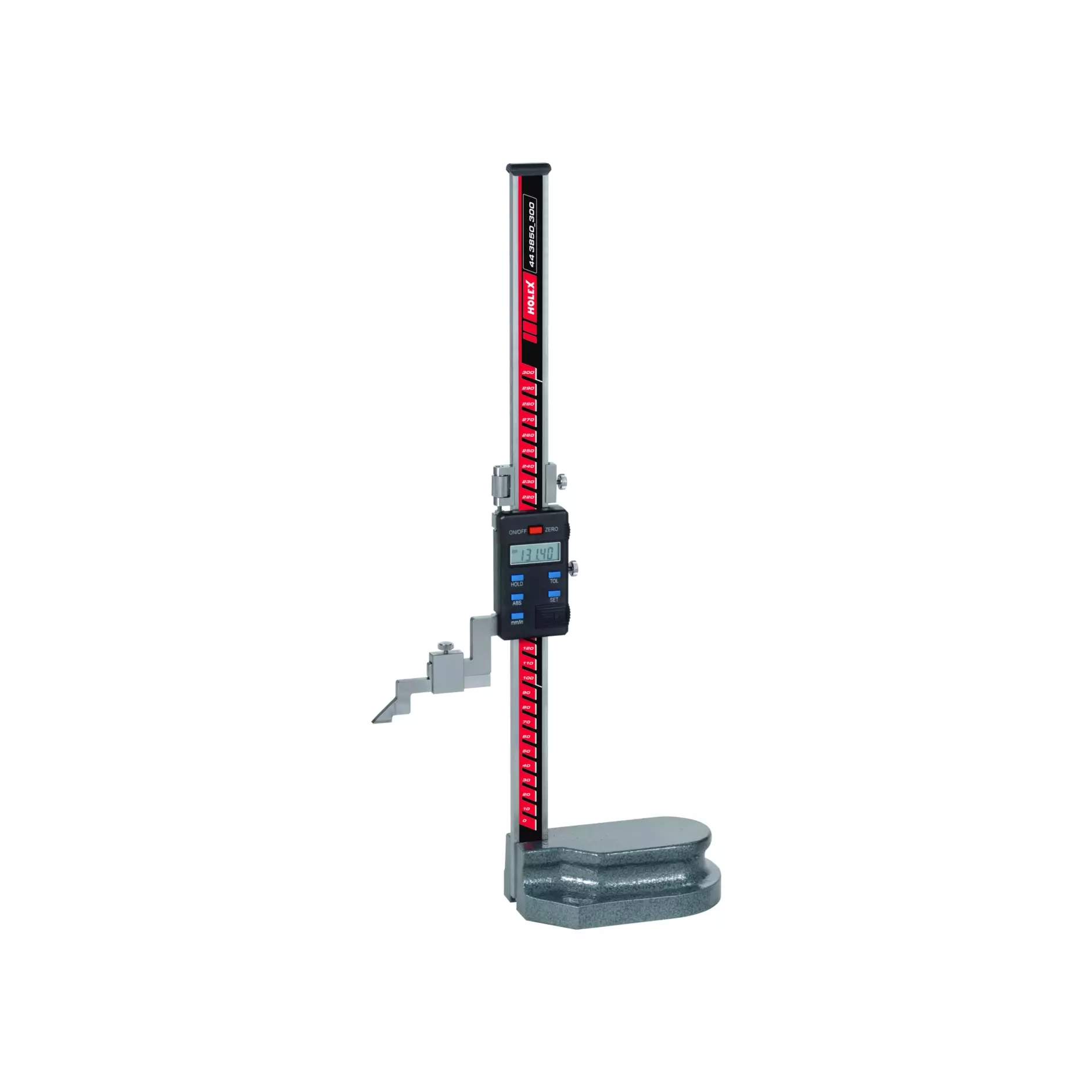

Digital height gauge and marking out system with fine adjustment. Sturdy stand with ground base.
Easily legible LCD display. Scriber carbide tipped.
Function
Zeroing possible in any position.
Hold function (HOLD).
ABS / INC / TOL and SET.
Supplied with
1 battery No. Button cell / special battery size 357, 1 carbide tipped scriber No. Spare scriber, carbide tipped.

Specifications

Standard
Manufacturer’s standard
Reversible reading
mm / inch
Measurement technology
digital
Calibration
E1
Type of product
Height gauge and marking device
More information
  • DeliverableDeliverable

Execution and specifications

Article no.‌Article no of the battery / rechargeable battery fittedMarking heightScale divisionsError limitGross CHFQty.
328357
081560 357300 mm0.0005 Zoll0.05 mm
538.88
per Piece
  • Deliverable

Additional information

Power supplyBattery-powered
‌Number of batteries contained1
Column cross section23×6.1
Base length135 mm
Base width90 mm
Weight2.1 kg

Delivery and pick-up availability

  • DeliverableDeliverable
328358
081560 357600 mm0.0005 Zoll0.07 mm
944.79
per Piece
  • Deliverable
