TOPCON duct laser TP-L6
- Description
- The TP-L6 trunking laser is one of the most flexible on the market thanks to its more compact dimensions, long-life battery and mobile app. It is easier to operate, fits into tighter spaces and increases comfort and safety for workers.
Control at the touch of a button
With the "Laser Manager" app for Android, many of the most frequently used functions of your duct laser are literally at your fingertips:Automatic target acquisition Beam adjustment (left, right, centre) Tilt control Activate optional plumb beam Set or calculate inclination Adjust laser mode (continuous light, flashing, low energy consumption) Check battery status Display electronic level
Thanks to the new functionality, you can set up and set up the laser even faster and spend less time in shafts, confined excavations and trenches and in poor visibility conditions.
- Advantage
- Compact design for use in small pipes
- The mobile app's remote display makes it easy to view and adjust settings
- Reduces the need for frequent descents into shafts and trenches
- Battery compatible with other Topcon instruments
- More flexible thanks to compact design

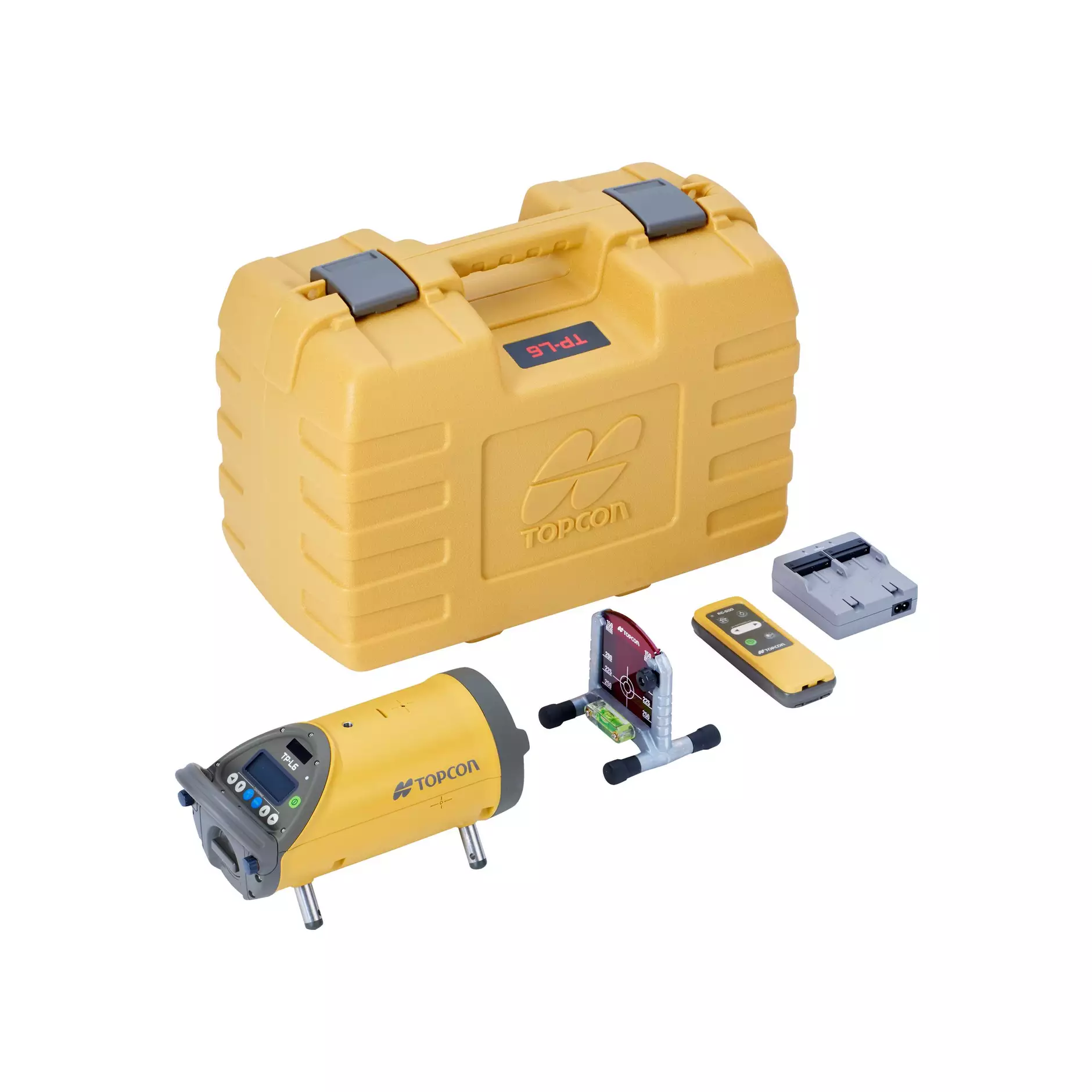

- Supplied with
- Canal construction laser .
- Battery pack .
- Charger .
- Remote control RC-200 .
- Target board .
- Target board holder .
- Transport case .
- Operating instructions
- Technical Data
Self-levelling Tilt range -15% to +40% Horizontal swivelling range + 15%Horizontal accuracy + 10"Working time approx. 60 h with battery Optional plumb beam Additional remote control and display via mobile Android app Bluetooth connection Rugged, waterproof housing made of cast aluminium Lockable battery pack
Execution and specifications
| Show details | Article no. | Model | Colour type | Gross CHF | Qty. | Actions |
|---|---|---|---|---|---|---|
210494 | TP-L6A | red | 4'578.04 | per Piece | ||
210495 | TP-L6G | green | 5'350.95 | per Piece |
