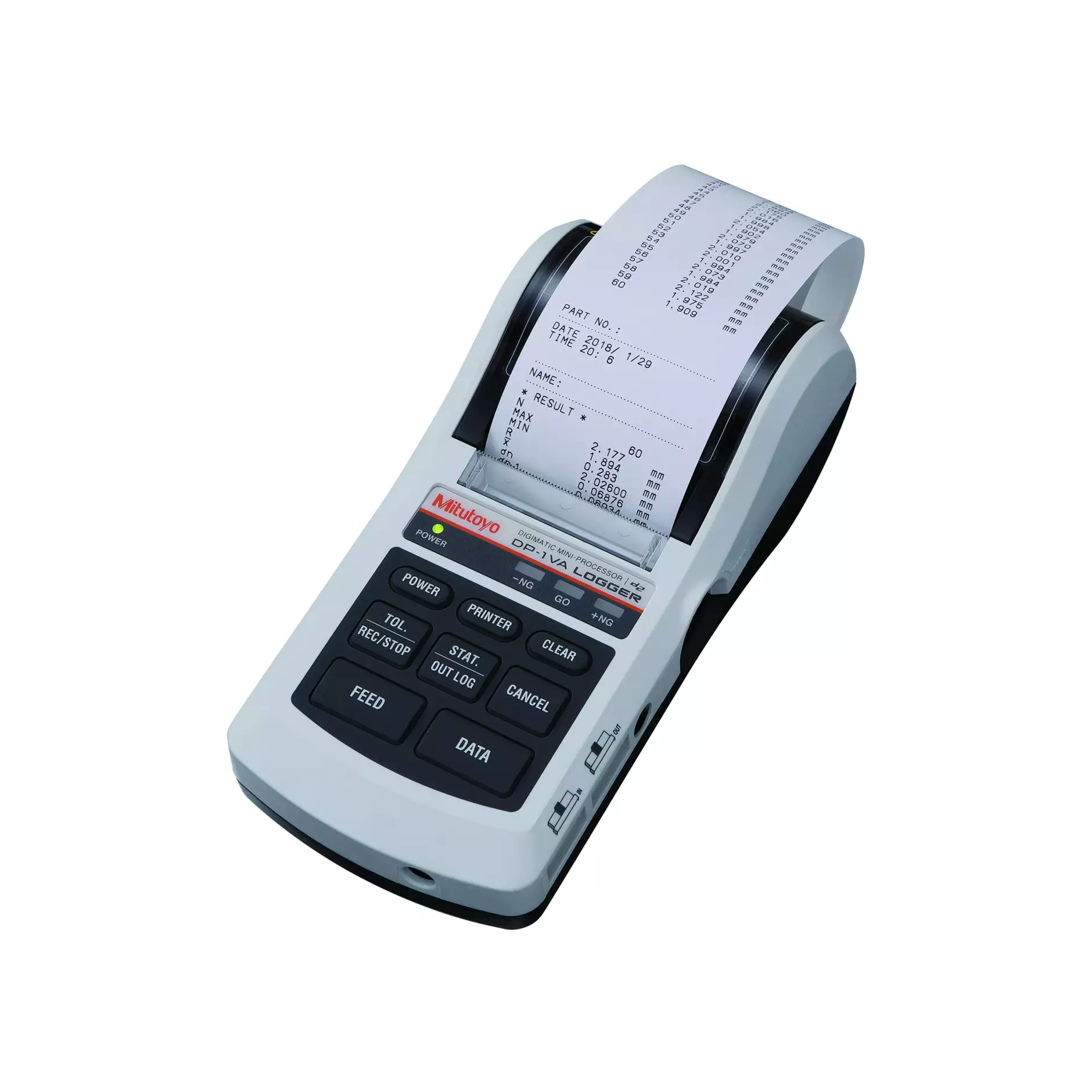

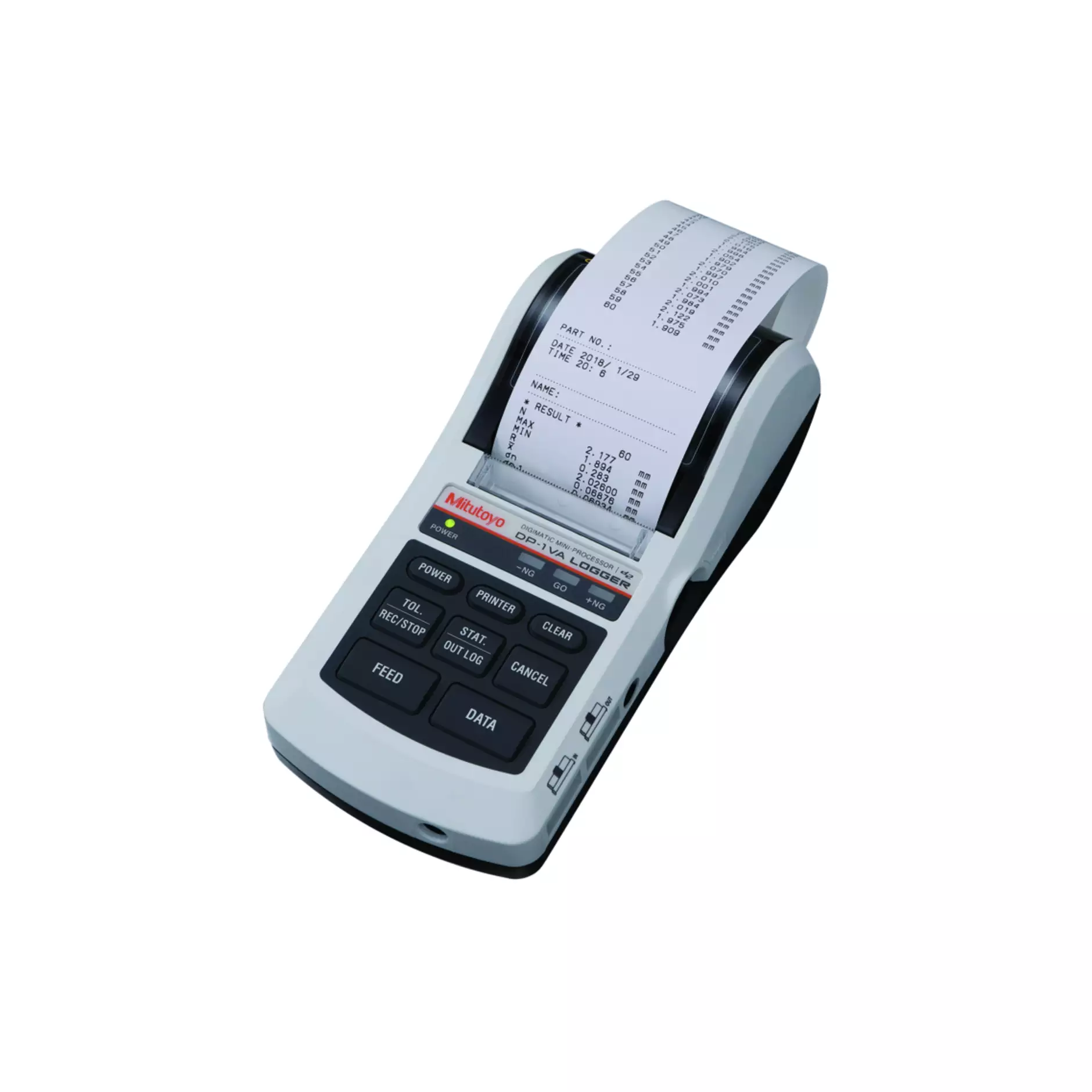

Mini-processor / printer DP-1 VA DP1VA

Article no.: 672487EAN: 4946368728476
  • 498701
  • 264-505D
Version
Fast and quiet data printer. Large easily legible characters. Timed reading of measured values (clock function). Data logging up to 9999 values. Thermal printer paper with long-term stability. Very compact. Press key to start. Powered by 6V mains adapter, batteries or rechargeable batteries. Data logger function with time stamp. Printing and data transmission can be performed concurrently. Compatible with measuring devices with the Digimatic 2 format.
Printable data: Measured values; OK / not OK values, number of data, min / max value, range; average value, standard deviation, number of rejects, percentage of rejects, process capability index, histogram, intervention limits; date and time.
Application

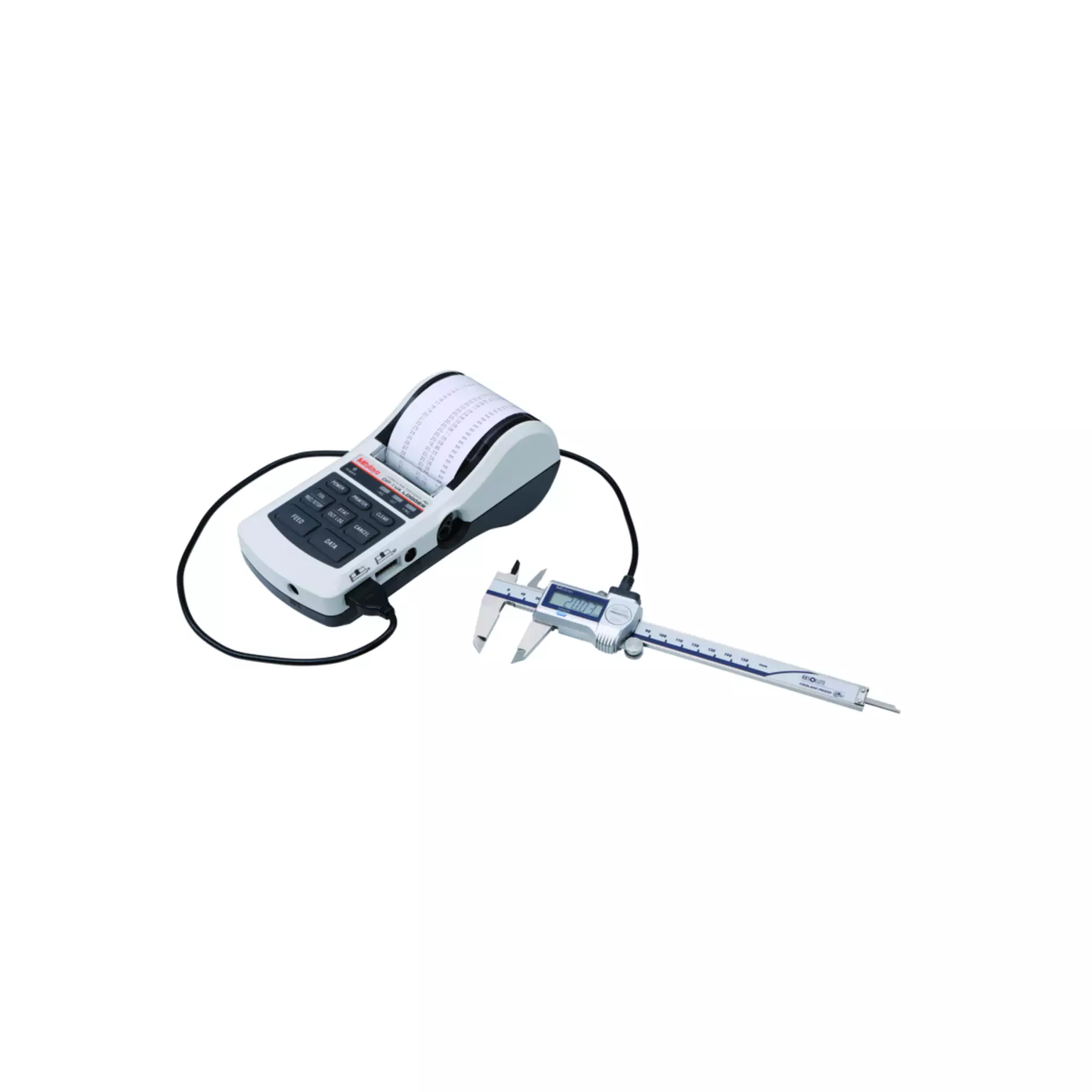

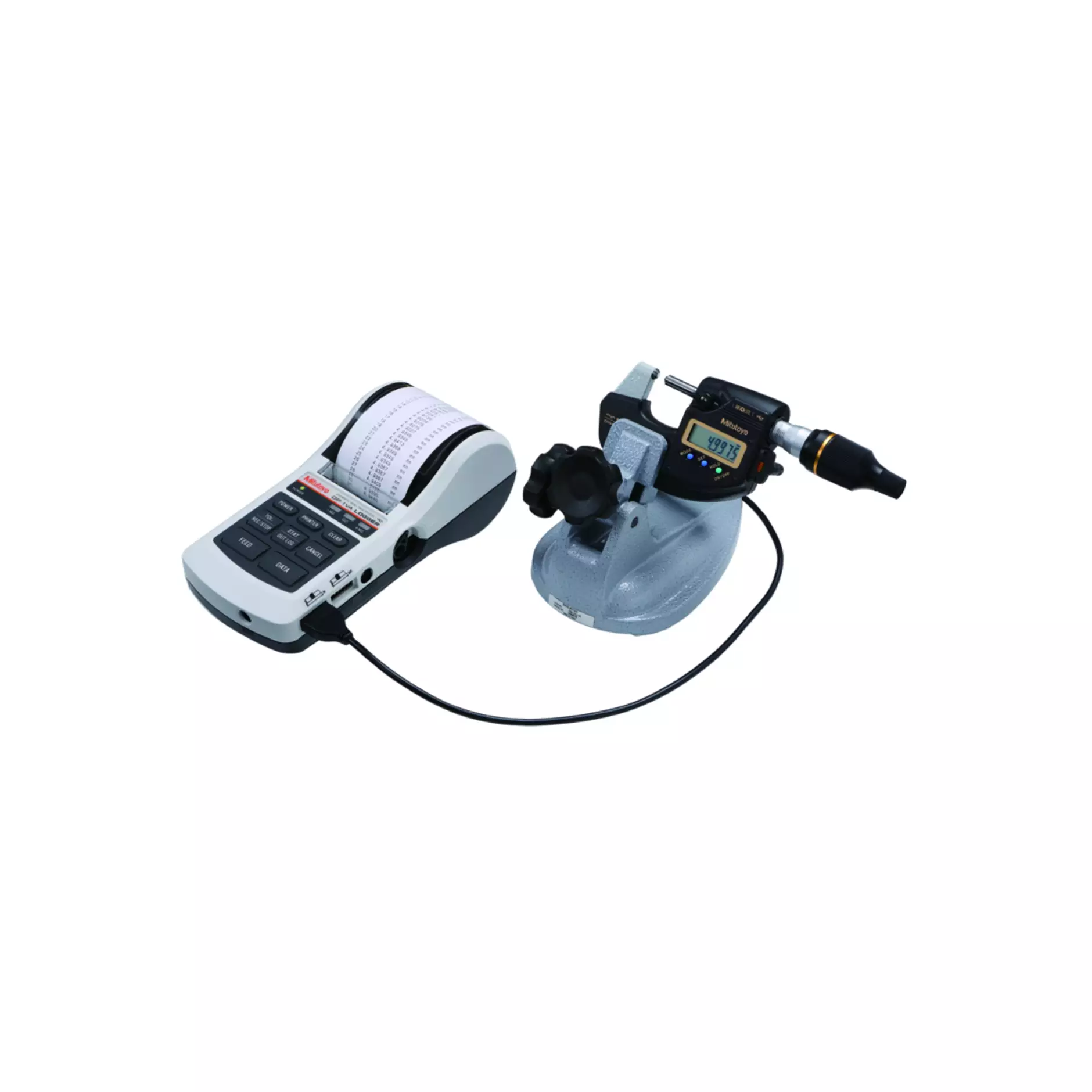

For data collection, printing, and statistical evaluation of the measured data of small measuring tools with Digimatic interface.
Supplied with
Supplied with 1 roll thermal paper, carrying strap, and mains adapter.
Optional extras
Thermal paper No. Thermal register paper set, 5 pieces, for No. 498700, foot switch No. Foot switch for data transmission units. Batteries (4 pieces) No. Set of NiMH rechargeable batteries size LR6, batteries (4 pieces) No. Alkaline-manganese batteries
size. LR6.

Specifications

Interface
Digimatic interface – RS232C interface
Type of product
Data printer
More information
  • DeliverableDeliverable

Execution and specifications

Article no.Power supplyGross CHFQty.
672487
Rechargeable battery-powered – Mains operated
631.30
per Piece
