Clamping force load cell for three-jaw chucks 0-160 kN
Article no.: 568114
- 479115
- 14361908
- Version

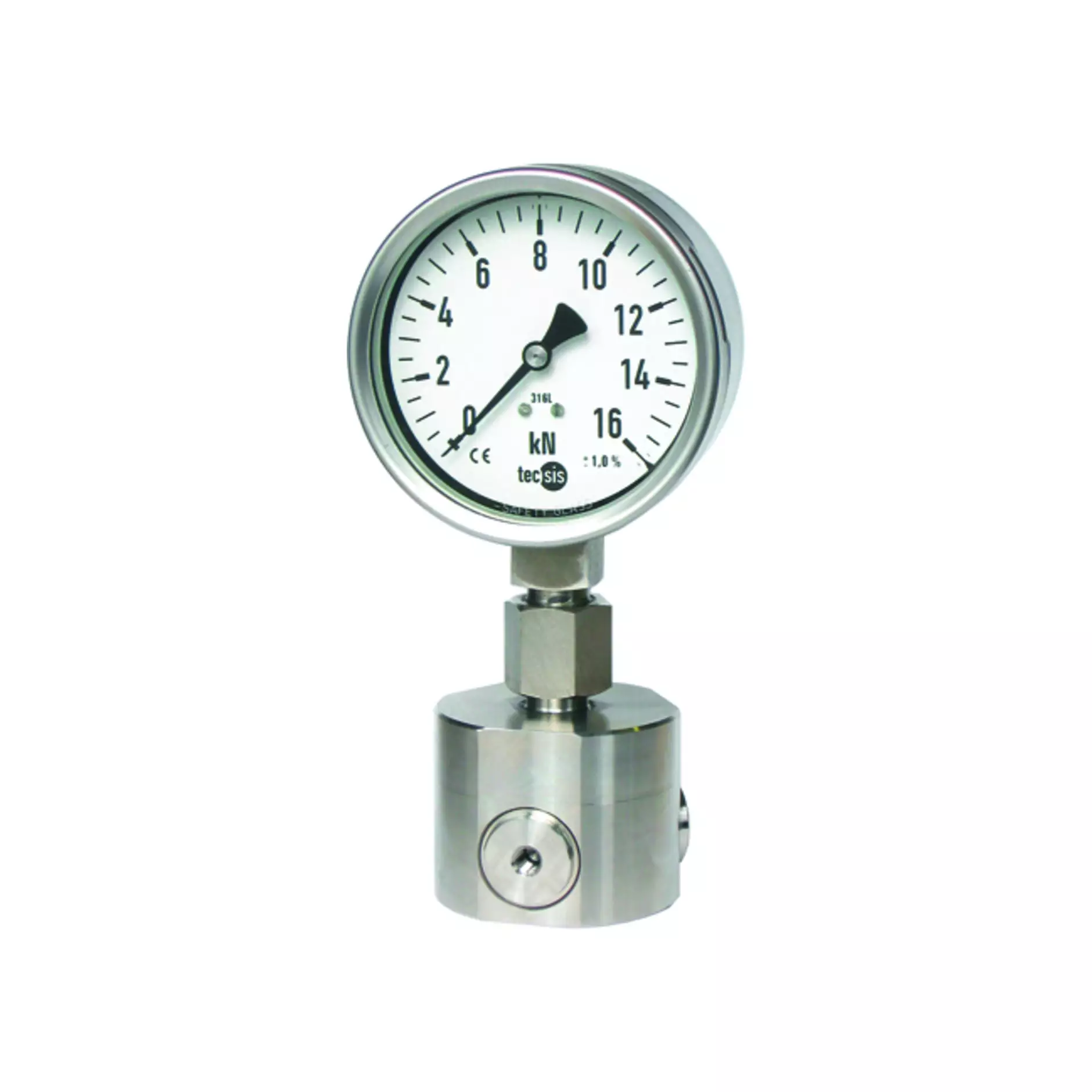

- Hydraulic load cell with directly attached pressure gauge for static and quasi-static force measurement.
Body and piston stainless steel, pressure gauge of pressed brass with memory pointer. Protected against contamination with foreign particles and water spray (IP43).
- Advantage
- When used in accordance with instructions, a leaktightness warranty of 5 years is given.
- Application
- In machine tool building.
Particularly suitable for use in three-jaw chucks.
- Supplied with
- Display unit, manufacturer’s certificate of conformity, and transport case.
Specifications
- Measurement technology
- analogue
- Test certificate
- Manufacturer’s test certificate
- Packaging
- sturdy box
- Type of product
- Load cell
Execution and specifications
| Show details | Article no. | Measuring range | Scale graduations | Error limit | Height of load cell | Gross CHF | Qty. | Actions | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
568109 | 0 kN – 10 kN | 0.2 kN | ±1.6 of the full scale value (±2.5 with memory pointer) | 40 mm | 1'794.46 | per Piece | ||||||
568110 | 0 kN – 30 kN | 0.5 kN | ±1.6 of the full scale value (±2.5 with memory pointer) | 40 mm | 1'794.46 | per Piece | ||||||
568112 | 0 kN – 75 kN | 2 kN | ±1.6 of the full scale value (±2.5 with memory pointer) | 57 mm | 2'124.17 | per Piece | ||||||
568114 | 0 kN – 160 kN | 5 kN | ±1.6 of the full scale value (±2.5 with memory pointer) | 77 mm | 2'453.87 | per Piece | ||||||
