Spring balance 50N

Article no.: 313161EAN: 7612908414761
  • 478900
Version

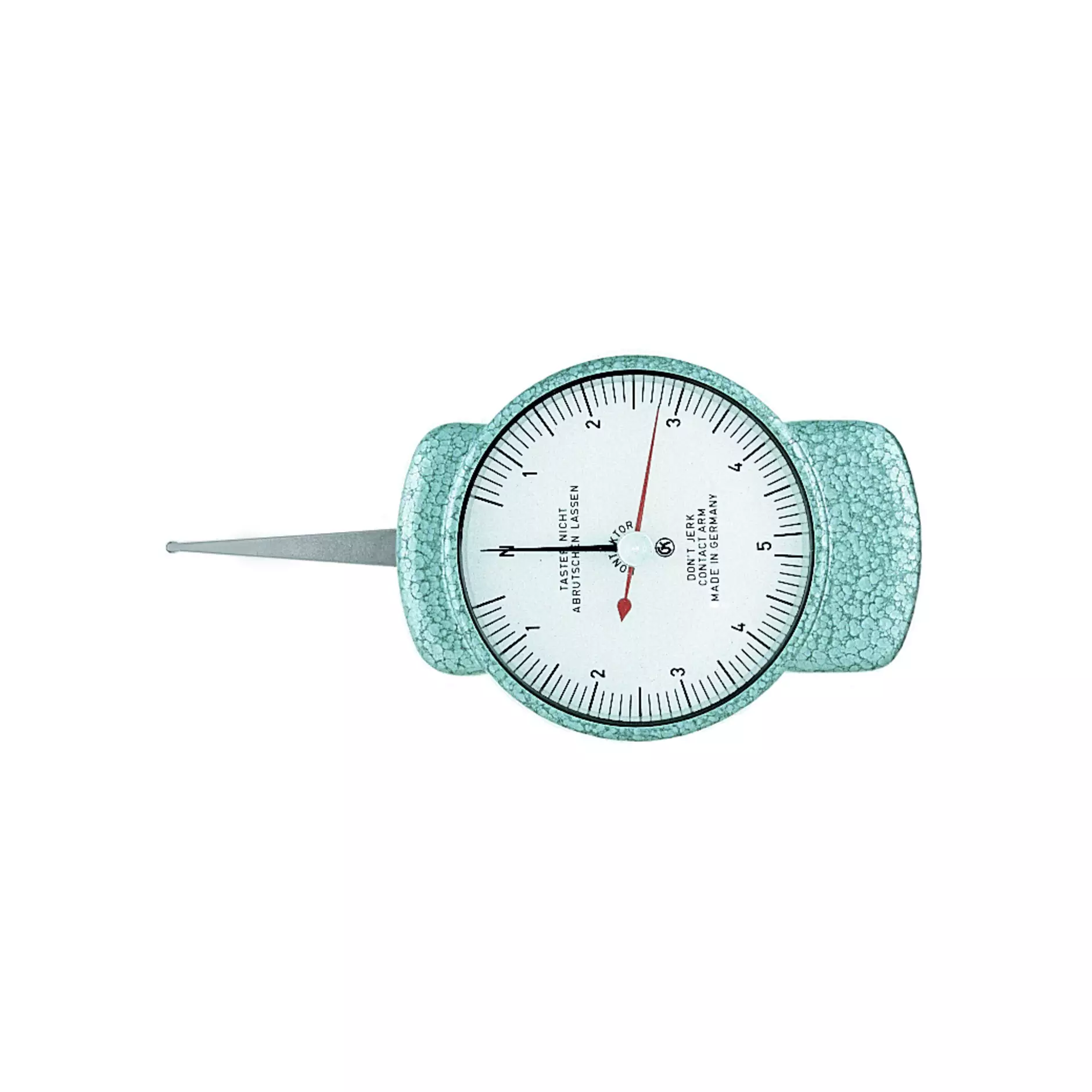

Sturdy metal housing in practical design; hammer finish. Clear dial face with double scale for measuring in both directions. With pointer and memory pointer.
Application

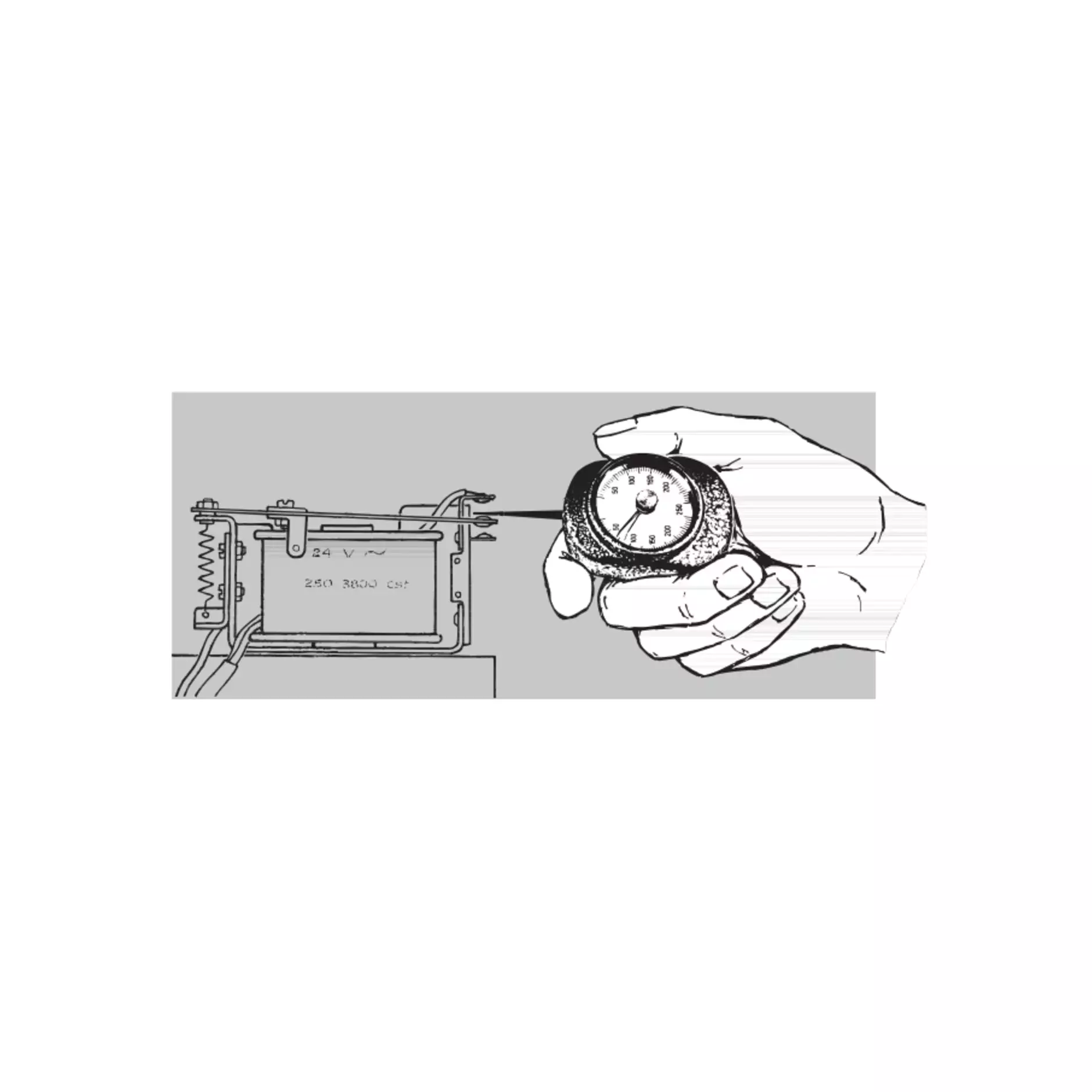

For electrical engineering and fine mechanical work, e.g. setting the contact pressure of relay springs, checking the brush pressure on motors or for adjusting tension or compression springs.
Accuracy
± 0.01×(measuring range + measured value).

Specifications

Measurement technology
analogue
Type of product
Spring balance
More information
  • Deliverable in 3-4 weeksDeliverable in 3-4 weeks

Execution and specifications

Article no.Measuring rangeScale graduationsProbe length LDial face ⌀Gross CHFQty.
221610
0.05 N – 0.5 N1 cN29 mm36 mm
380.51
per Piece
  • Deliverable in 3-4 weeks
221601
0.1 N – 1 N2 cN29 mm36 mm
380.51
per Piece
  • Deliverable in 3-4 weeks
221605
0.25 N – 2.5 N5 cN29 mm36 mm
380.51
per Piece
  • Deliverable in 3-4 weeks
221609
0.5 N – 5 N0.1 N48 mm72 mm
488.07
per Piece
  • Deliverable in 3-4 weeks
221600
1 N – 10 N0.2 N48 mm72 mm
488.07
per Piece
  • Deliverable in 3-4 weeks
221607
3 N – 30 N0.5 N48 mm72 mm
556.72
per Piece
  • Deliverable in 3-4 weeks
221608
4 N – 40 N1 N48 mm72 mm
556.72
per Piece
  • Deliverable in 3-4 weeks
313161
5 N – 50 N1 N48 mm72 mm
574.01
per Piece
  • Deliverable in 3-4 weeks

Additional information

CalibrationK1

Delivery and pick-up availability

  • Deliverable in 3-4 weeksDeliverable in 3-4 weeks
221602
10 N – 100 N2 N8 mm72 mm
650.76
per Piece
  • Deliverable in 3-4 weeks
