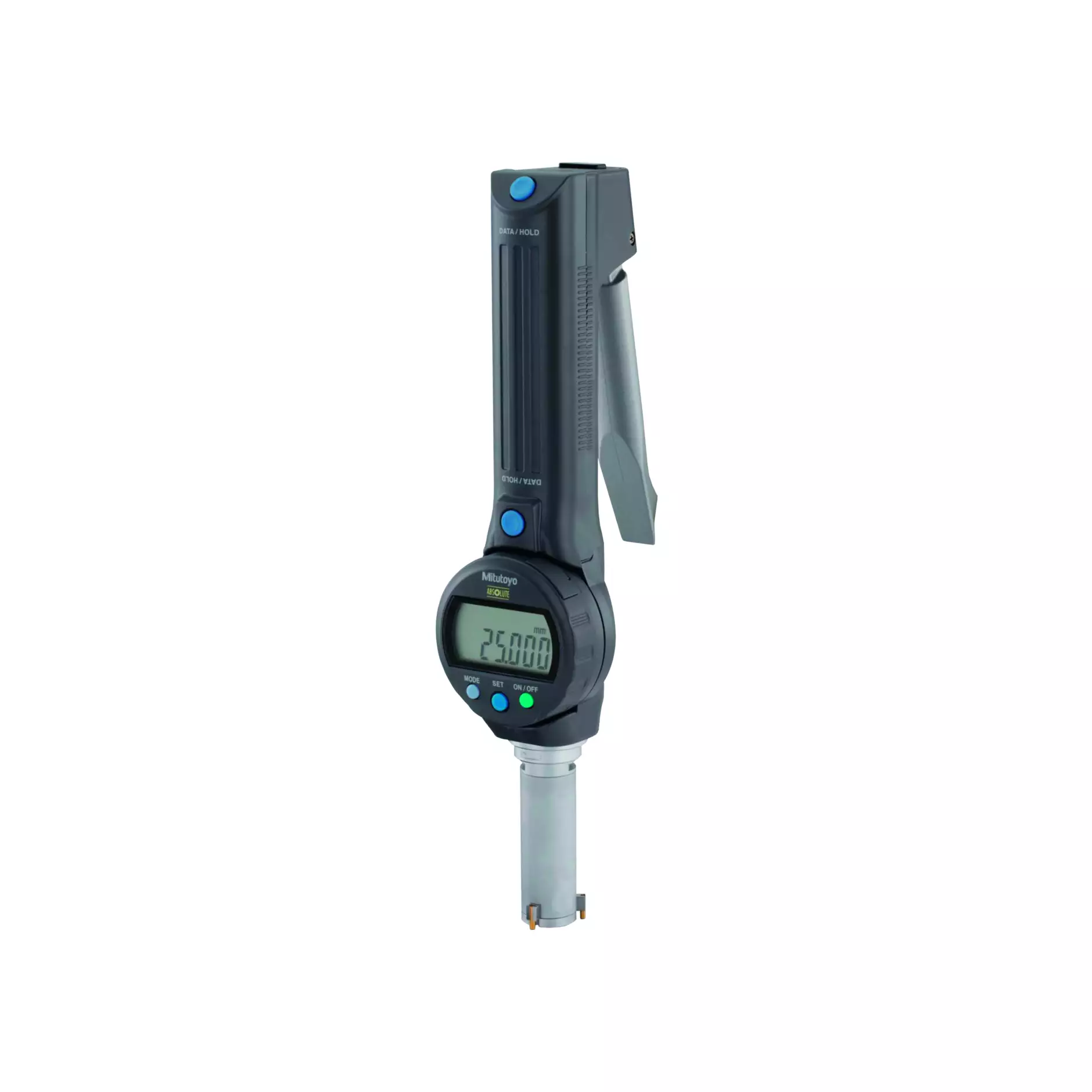

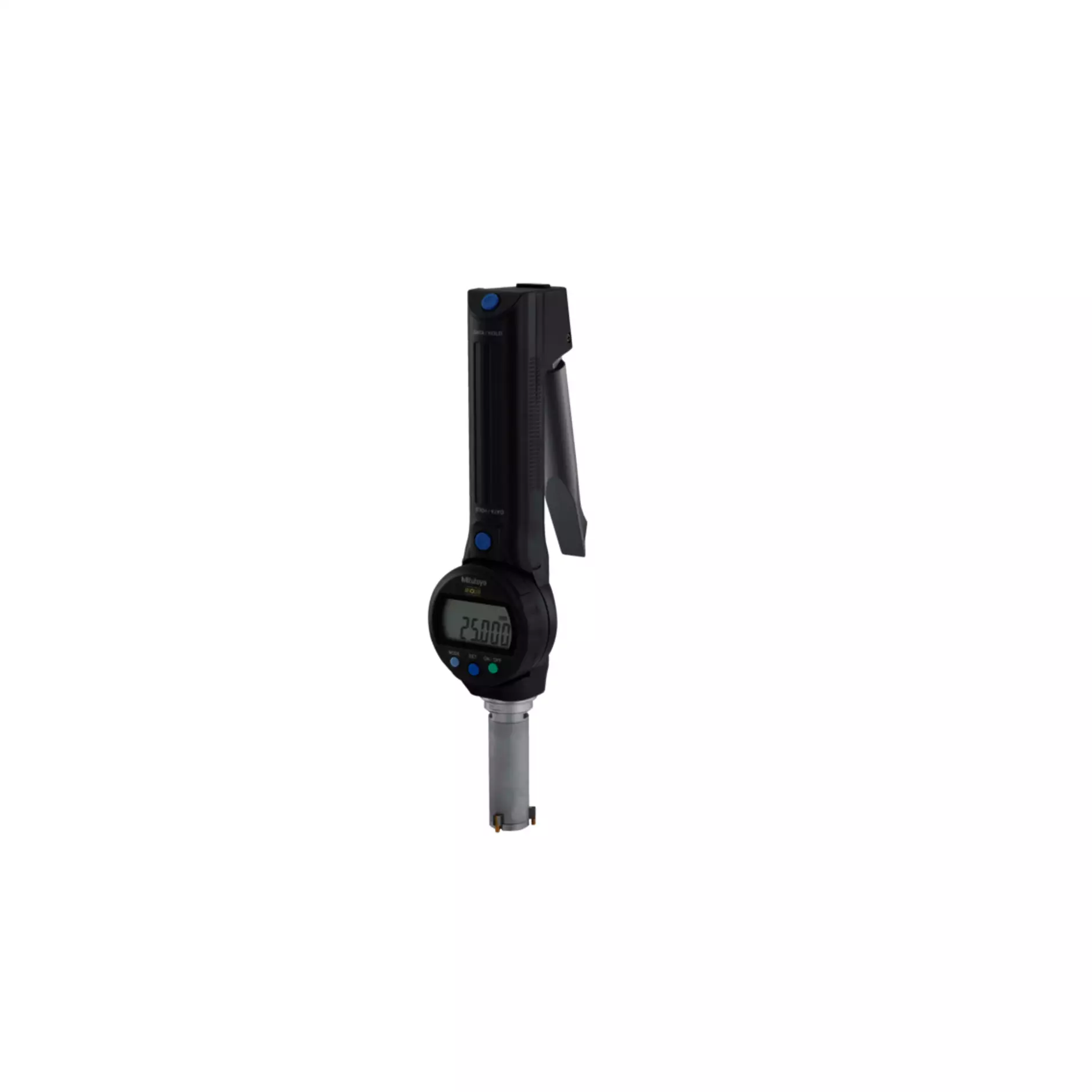

Digital three-point internal micrometer 25-30 mm

Article no.: 568050EAN: 4946368636528
  • es1880_b429250_20-25
  • gr12_g428500
  • es1880_b429250_anw1
  • es1880_sbm-25cx_pdf-hshd23c55fd8291a47b1fecb591f88b2060
  • es1880_b429250_20-25
  • gr12_g428500
  • es1880_b429250_anw1
  • es1880_sbm-25cx_pdf-hshd23c55fd8291a47b1fecb591f88b2060
  • 429250
  • 568-367
Version
-point bore gaugeBorematic for blind hole measurement. Large LCD display with 11 mm character height for clear and error-free reading. Display can be rotated 330°. The measuring probes centre the micrometer automatically in the bore and ensure easy handling. The measuring probes are adjusted without any error by a carbide cone.
Advantage

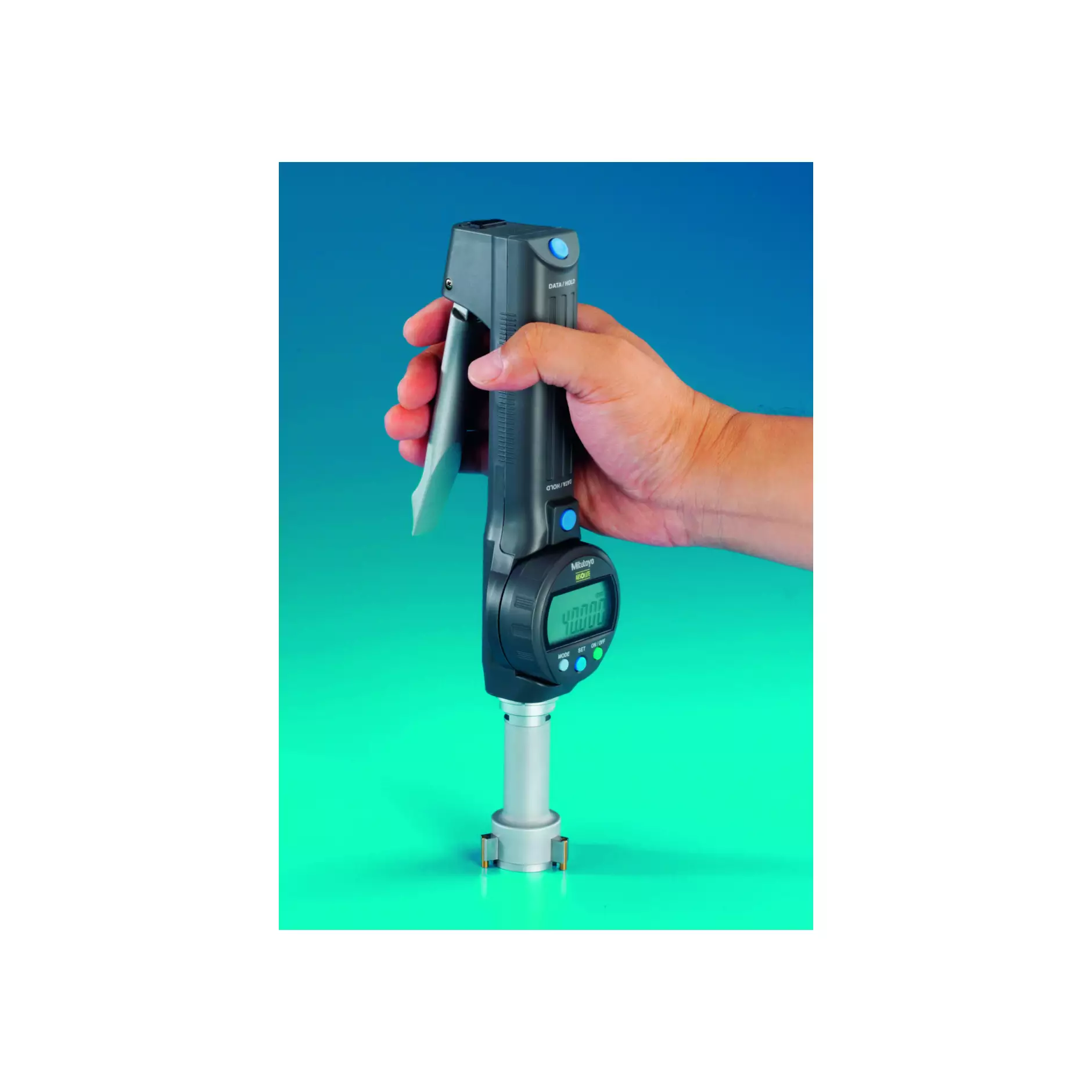

Very quick measurement with high repetition accuracy due to pistol grip and constant measuring force.
Function
  • Data storage button saves the measurement result (for instance in inaccessible measurement positions).
  • Zero point / absolute size enables zeroing at any position.
  • Good / Reject display for easy checking against tolerance values.
  • Quick adjustment for quick spanning of the distance to be measured.

Supplied with
1 battery No. Button cell / special battery size 357.
Optional extras
Digimatic data cable No. Connecting cable, extensions No. Extension for internal micrometer, setting rings No. Setting ring DIN 2250 C.
Spare part
Spare micrometer head No. Spare measuring head.

Specifications

Standard
Manufacturer’s standard
Interface
Digimatic interface
Measured value saving
once-off setting of the zero position
Measurement technology
digital
Test certificate
Manufacturer’s test certificate
Packaging
sturdy box
Calibration
B6
Type of product
3-point bore gauge
More information
  • Deliverable in 1-2 weeksDeliverable in 1-2 weeks

Execution and specifications

Article no.‌Article no of the battery / rechargeable battery fittedMeasuring rangeScale divisionsError limitGross CHFQty.
568044
081560 3576 mm – 8 mm0.001 mm0.005 mm
1'626.91
per Piece
  • Deliverable in 1-2 weeks
568045
081560 3578 mm – 10 mm0.001 mm0.005 mm
1'626.91
per Piece
  • Deliverable in 1-2 weeks
568046
081560 35710 mm – 12 mm0.001 mm0.005 mm
1'626.91
per Piece
  • Deliverable in 1-2 weeks
568047
081560 35712 mm – 16 mm0.001 mm0.005 mm
1'659.34
per Piece
  • Deliverable in 1-2 weeks
568048
081560 35716 mm – 20 mm0.001 mm0.005 mm
1'659.34
per Piece
  • Deliverable in 1-2 weeks
568049
081560 35720 mm – 25 mm0.001 mm0.006 mm
1'767.44
per Piece
  • Deliverable in 1-2 weeks
568050
081560 35725 mm – 30 mm0.001 mm0.006 mm
1'767.44
per Piece
  • Deliverable in 1-2 weeks

Additional information

Power supplyBattery-powered
‌Number of batteries contained1

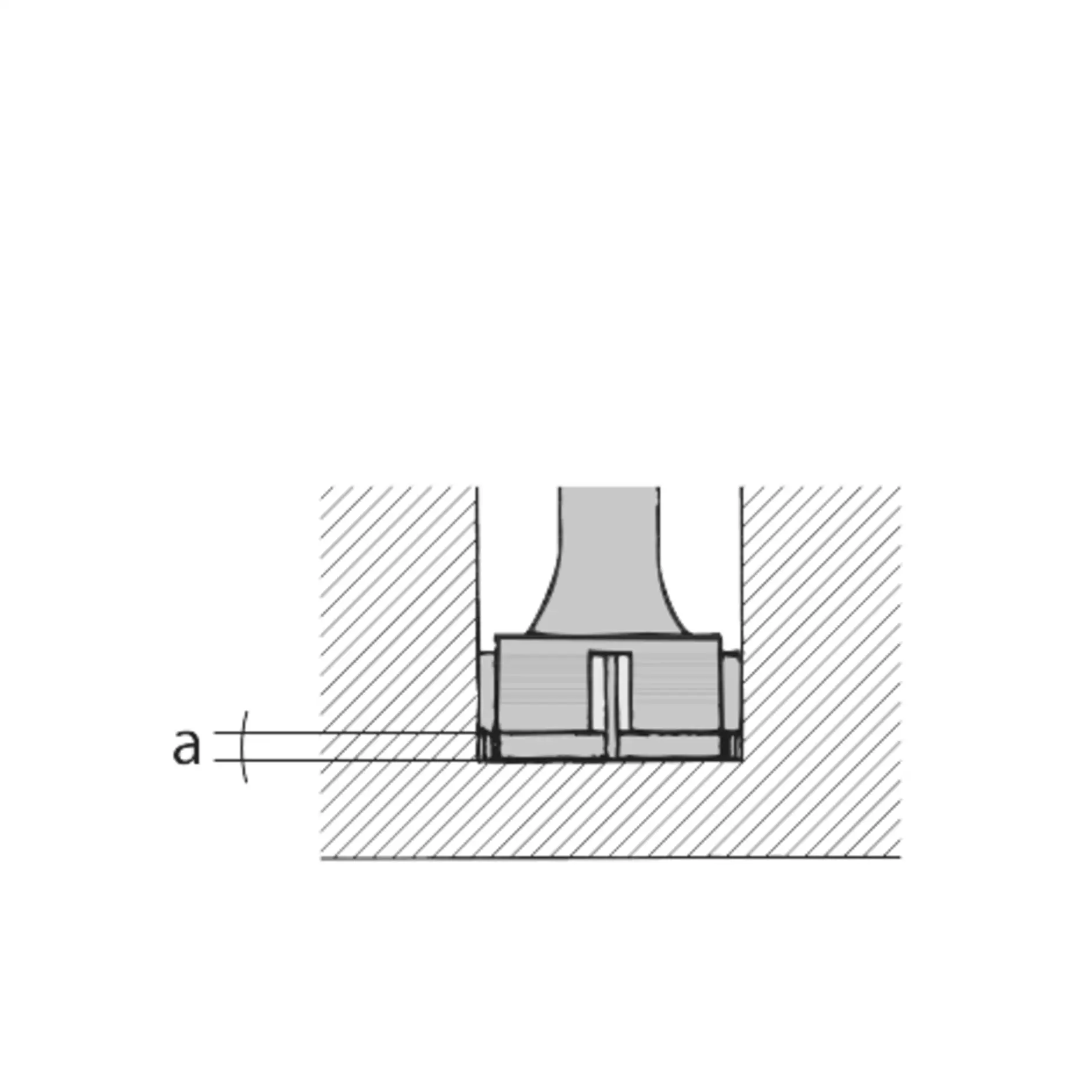

Dimension a0.3 mm
Standard measuring depth59 mm
Measuring depth with extension209 mm

Delivery and pick-up availability

  • Deliverable in 1-2 weeksDeliverable in 1-2 weeks
568051
081560 35730 mm – 40 mm0.001 mm0.006 mm
1'918.77
per Piece
  • Deliverable in 1-2 weeks
568052
081560 35740 mm – 50 mm0.001 mm0.006 mm
1'918.77
per Piece
  • Deliverable in 1-2 weeks
568054
081560 35750 mm – 63 mm0.001 mm0.006 mm
2'005.25
per Piece
  • Deliverable in 1-2 weeks
568055
081560 35762 mm – 75 mm0.001 mm0.006 mm
2'043.09
per Piece
  • Deliverable in 1-2 weeks
568056
081560 35775 mm – 88 mm0.001 mm0.006 mm
2'113.36
per Piece
  • Deliverable in 1-2 weeks
568057
081560 35787 mm – 100 mm0.001 mm0.006 mm
2'113.36
per Piece
  • Deliverable in 1-2 weeks

Specifications

Version

Anvils of titanium-coated hardened steel.
