Digital three-point internal micrometer set 6-12 mm

Article no.: 514526EAN: 4946368636719
  • 429260
  • 568-924
Version
Borematic quick blind hole micrometer for 3-point internal measurement. Large LCD display with 11 mm character height for clear and error-free reading. Display can be rotated 330°. The measuring probes centre the micrometer automatically in the bore and ensure easy handling. The measuring probes are adjusted without any error by a carbide cone.
Advantage
Very quick measurement with high repetition accuracy due to pistol grip and constant measuring force.
Function
  • Data storage button saves the measurement result (for instance in inaccessible measurement positions).
  • Zero point / absolute size enables zeroing at any position.
  • Good / Reject display for easy checking against tolerance values.
  • Quick adjustment for quick spanning of the distance to be measured.

Supplied with

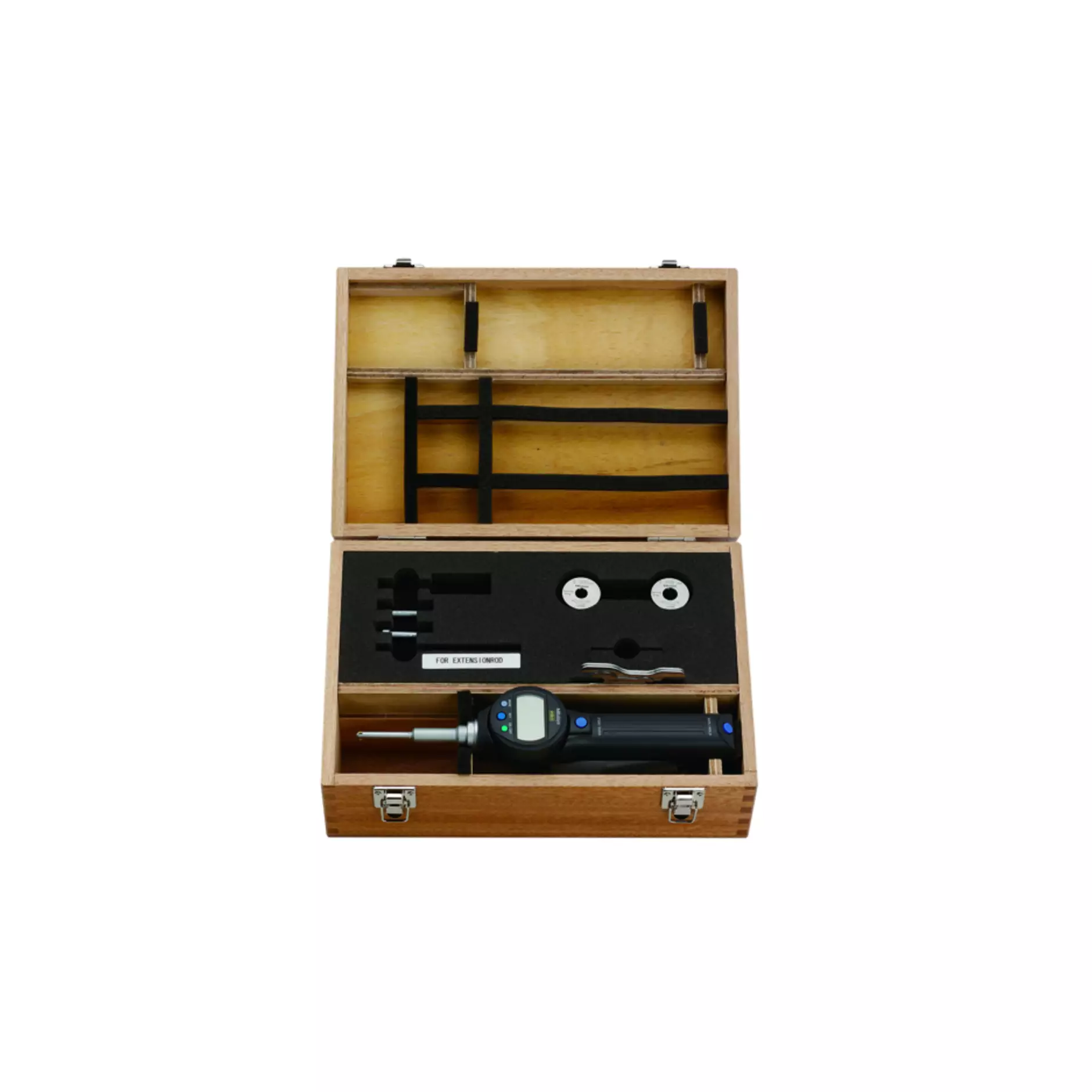

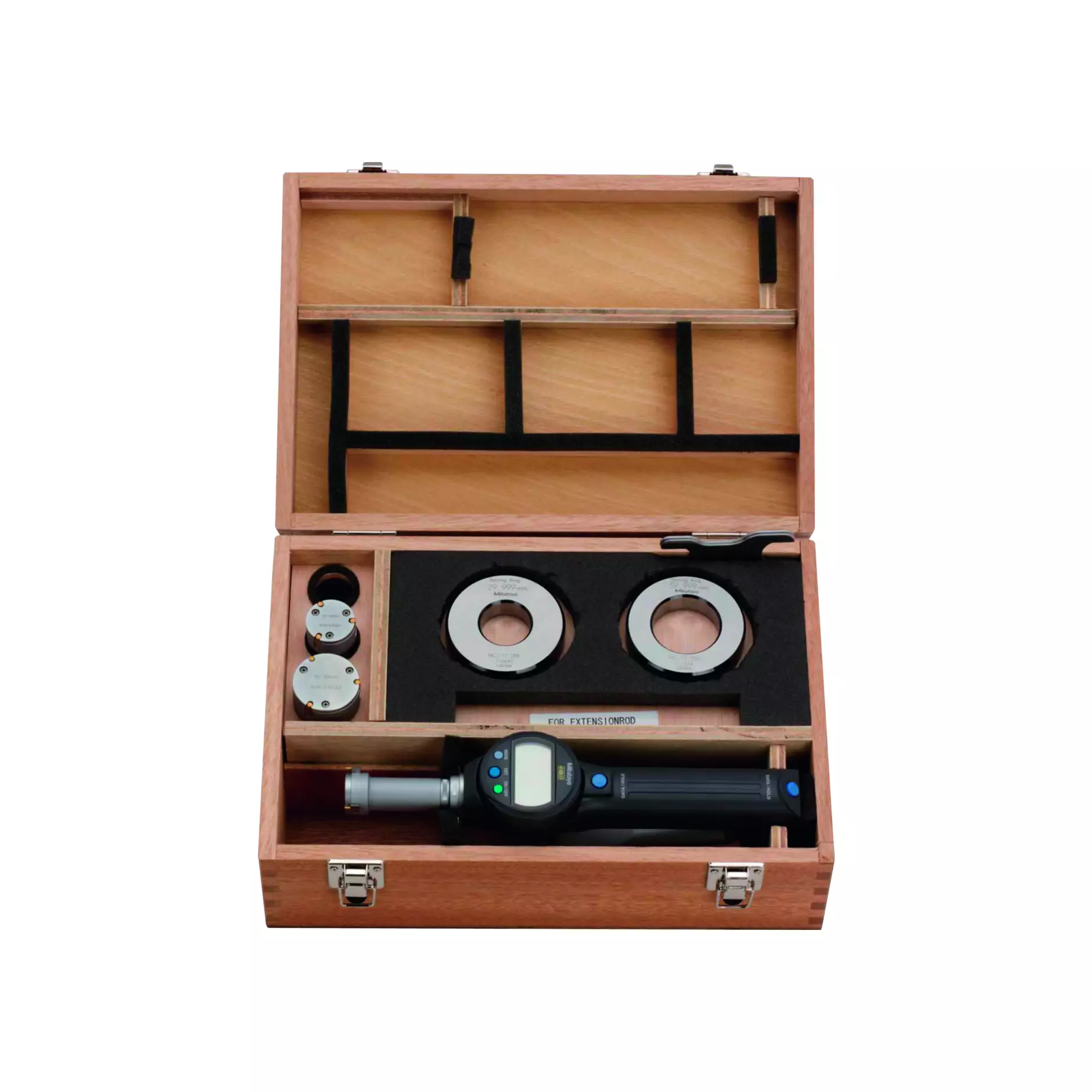

Digital internal micrometers No. Digital three-point bore gauge, setting rings.

Specifications

Standard
Manufacturer’s standard
Interface
Digimatic interface
Measured value saving
once-off setting of the zero position
Measurement technology
digital
Test certificate
Manufacturer’s test certificate
Packaging
sturdy box
Calibration
S6
Type of product
3-point bore gauge
More information
  • Deliverable in 3-5 daysDeliverable in 3-5 days

Execution and specifications

Article no.Measuring rangeScale divisionsError limitPower supplyGross CHFQty.
514526
6 mm – 12 mm0.001 mm0.005Battery-powered
2'394.42
per Piece
  • Deliverable in 3-5 days

Additional information

Number of measuring heads3
Number of setting rings2
Setting ring ⌀8 / 10

Delivery and pick-up availability

  • Deliverable in 3-5 daysDeliverable in 3-5 days
514527
12 mm – 25 mm0.001 mm0.005 / 0.006Battery-powered
2'572.78
per Piece
  • Deliverable
514528
25 mm – 50 mm0.001 mm0.006Battery-powered
3'026.80
per Piece
  • Deliverable
568058
50 mm – 100 mm0.001 mm0.006Battery-powered
5'134.75
per Piece
  • Deliverable
