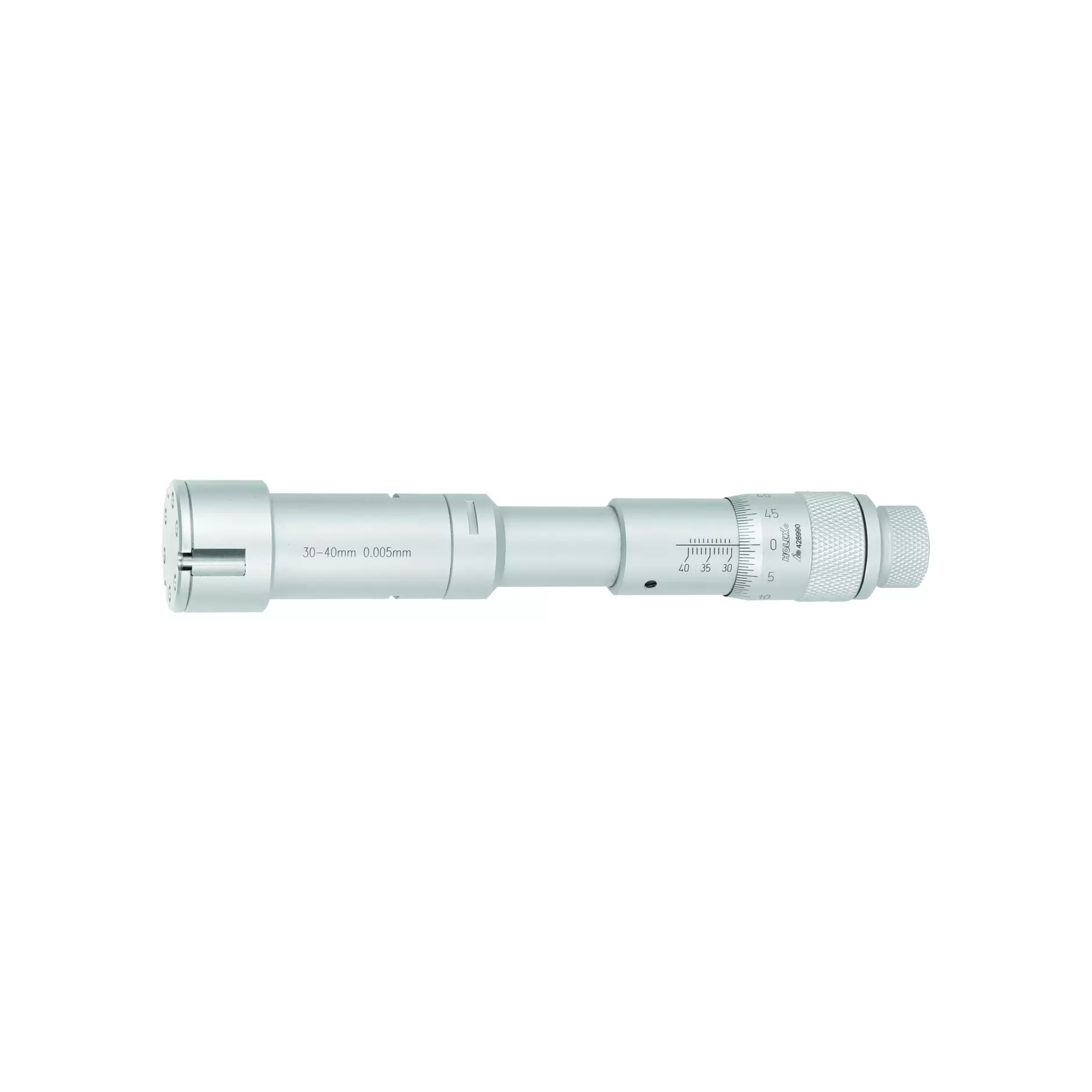

Internal micrometer 30-40 mm
Article no.: 393602EAN: 4045197274243
- 428990
- Version
- Satin chrome plated scales and operating parts (from ⌀ 12 with carbide jaws). Self-centring micrometer head with 3 measuring jaws (from ⌀ 12 with carbide jaws).
- Supplied with
- Setting ring (for adjustment) and extension.
- Optional extras
- Extension No. Extension for internal micrometer, setting rings No. Setting ring DIN 2250 C.
Specifications
- Standard
- Manufacturer's standard
- Micrometer barrel graduations
- 1/50
- Measurement technology
- analogue
- Packaging
- sturdy box
- Calibration
- B6
- Type of product
- 3-point internal micrometer
Execution and specifications
| Show details | Article no. | Measuring range | Scale divisions | Error limit | Dimension a | Gross CHF | Qty. | Actions | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
393595 | 6 mm – 8 mm | 0.001 mm | 0.004 mm | 1.5 mm | 392.40 | per Piece | ||||||||
393596 | 8 mm – 10 mm | 0.001 mm | 0.004 mm | 1.5 mm | 392.40 | per Piece | ||||||||
393597 | 10 mm – 12 mm | 0.001 mm | 0.005 mm | 1.5 mm | 392.40 | per Piece | ||||||||
393598 | 12 mm – 16 mm | 0.005 mm | 0.005 mm | 0.5 mm | 359.43 | per Piece | ||||||||
393599 | 16 mm – 20 mm | 0.005 mm | 0.006 mm | 0.5 mm | 359.43 | per Piece | ||||||||
393600 | 20 mm – 25 mm | 0.005 mm | 0.006 mm | 0.5 mm | 397.27 | per Piece | ||||||||
393601 | 25 mm – 30 mm | 0.005 mm | 0.006 mm | 0.5 mm | 397.27 | per Piece | ||||||||
393602 | 30 mm – 40 mm | 0.005 mm | 0.006 mm | 0.5 mm | 440.51 | per Piece | ||||||||
Additional information
Delivery and pick-up availability | ||||||||||||||
393603 | 40 mm – 50 mm | 0.005 mm | 0.006 mm | 0.5 mm | 479.96 | per Piece | ||||||||
538438 | 50 mm – 63 mm | 0.005 mm | 0.007 mm | 1 mm | 529.69 | per Piece | ||||||||
538439 | 62 mm – 75 mm | 0.005 mm | 0.007 mm | 1 mm | 546.99 | per Piece | ||||||||
538440 | 75 mm – 88 mm | 0.005 mm | 0.007 mm | 1 mm | 564.28 | per Piece | ||||||||
538441 | 87 mm – 100 mm | 0.005 mm | 0.007 mm | 1 mm | 616.17 | per Piece | ||||||||
