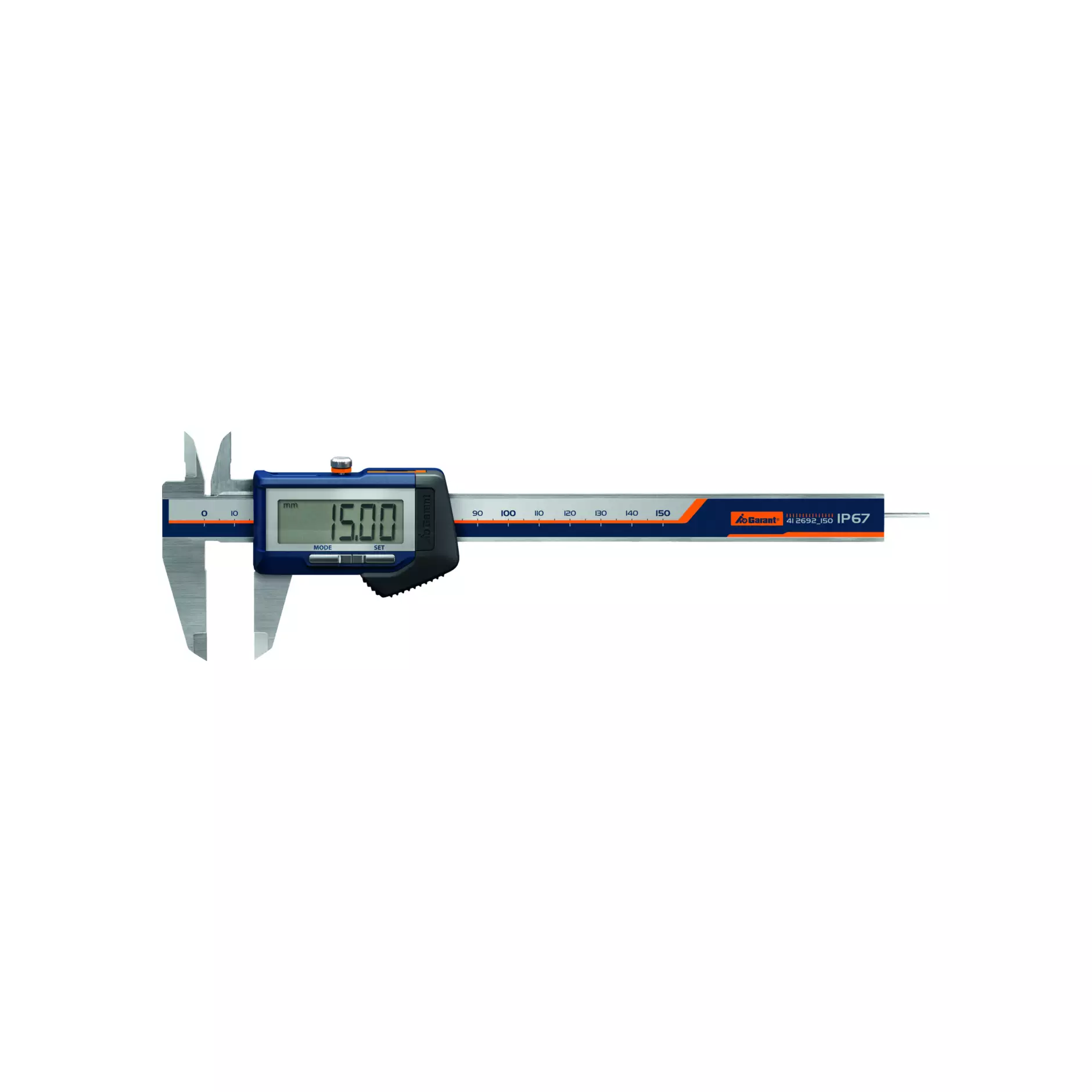

Digital caliper IP67 with rod type depth gauge and data output 150 mm

Article no.: 672301EAN: 4045197949714
  • 412692
Version
Digital calipers to IP67with data output. Easy-to-read, high-contrast LCD display with 11.5mm character height. Very long battery running time due to modern energy-efficient measurement system. The system switches automatically into power-saving mode after 20 minutes; moving the caliper reactivates it. There is no loss of the measurement value or zero point.
2-component body with non-slip Haptoprene surface. The calipers are resistant to water, coolant, oil, and dust − even when fitted with a data cable. The measuring faces are precision-lapped. With preset (dimension selection in advance).
Supplied with
1 battery No. Button cell / special battery size CR2032.
Optional extras
Data cable No. Connection cable, keyboard interface No. Keyboard interface USB.
Spare part
Data output cap No. Cover for digital calipers size D, battery holder No. Cover for digital calipers size B.

Specifications

Interface
RS232C interface – USB interface
Measurement technology
digital
Material
Stainless steel, INOX
all parts
hardened
Packaging
sturdy box
Type of product
Universal calipers
More information
  • DeliverableDeliverable

Execution and specifications

Article no.StandardMeasuring rangeScale divisionsReversible readingGross CHFQty.
672301
ISO 133850 mm – 150 mm0.0005 Zollmm / inch
156.20
per Piece
  • Deliverable

Additional information

Measurement deviation E MPE± 0.02
Depth gauge⌀ 1.6
IP Index of ProtectionIP 67
Jaw length40 mm
CalibrationA1
Power supplyBattery-powered
‌Number of batteries contained1
‌Article no of the battery / rechargeable battery fitted081560 CR2032

Delivery and pick-up availability

  • DeliverableDeliverable

Specifications

Function

IP67: Protected against intermittent immersion in water and protected against penetration by dust (dust-tight), also completely protected against touching.
