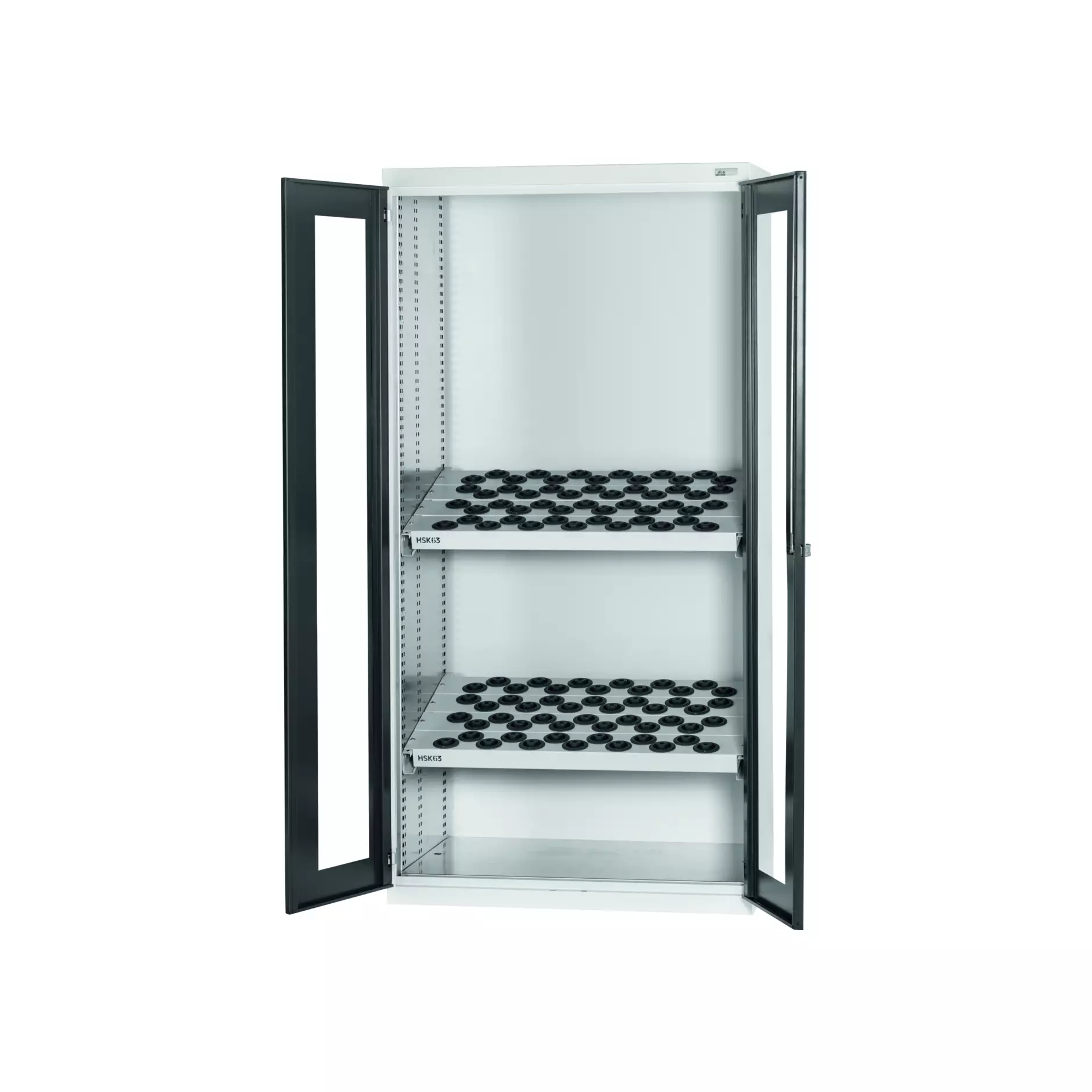

CNC large-capacity cabinet complete with tool sockets with viewing window swing doors SK30

Name: CNC large-capacity cabinet complete with tool sockets with viewing window swing doors SK30
Brand: GARANT GRIDLINE
SKU: 688110
Availability: LimitedAvailability

Article no.: 688110EAN: 4062406165000

971453

Version: Equipped cabinet in 40×28G. With mounting rails adjustable in 25 mm intervals. Swing doors reinforced on the inside and can be locked by 2-component Haptoprene slide handle with a cylinder lock. Maximum load capacity per mounting rail pair 200 kg, per tool block insert rail 150 kg.

Supplied with: Cabinet including mounting rails No. Mounting rails for shelves with tool sockets, pair size 28 and shelves with tool sockets No. Shelf with tool sockets for cabinet / compartment width 40 G.

Colour: Body, mounting rails and shelves RAL 7035 light grey, doors RAL 7016 anthracite, powder-coated.

Note: For storage shelves and accessories for GridLine large-capacity cabinets see No. Storage shelf with brackets 100 kg – Drawers for swing-door large-capacity cabinets and heavy-duty cabinets Width 40G 36×24G and Group 95.
According to the TÜV GS certification, it is essential that all cabinets are secured against tipping over.

Specifications

Material thickness: 0.9 mm
Cabinet housing internal load capacity: 1000 kg
Door opening angle: 250 Grad
Height adjustment interval: 25 mm
Cylinder lock: modular barrel
Colour selection: RAL 9002, 7035, 7005, 7016, 6011, 5018, 5012, 5011, 5005, 3003
Type of cabinet: Base cabinet
Cabinet fronts: Viewing window swing door
Type of product: CNC large-capacity cabinet

More information

ACL: 9GI CHF 2'470.09
per Piece / incl. VAT / excl. shipping costs
